VC3000Pro Series Vision Controller User Manual
27

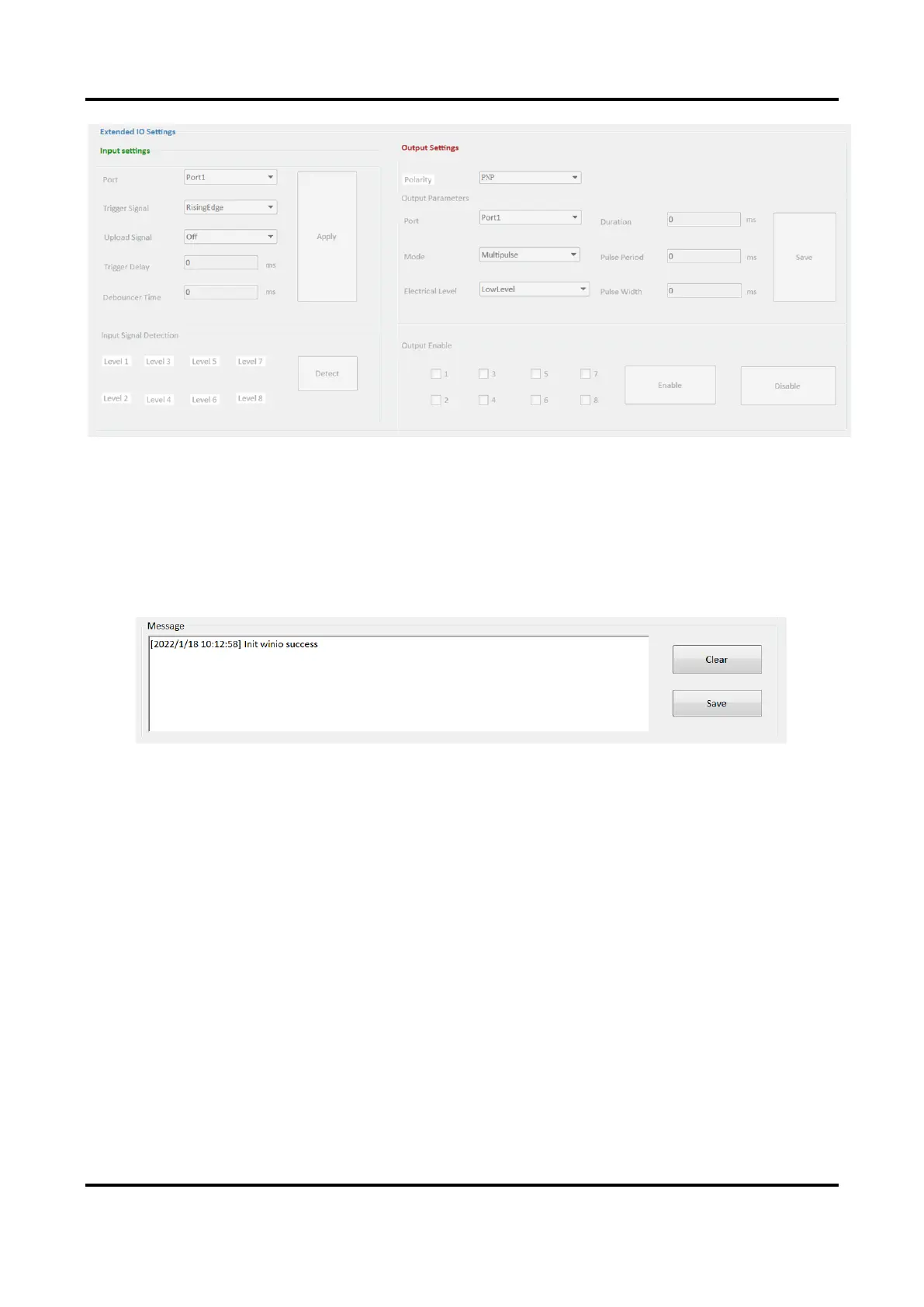

Figure 5-4 Set IO Extended Module
5.5 Message Window
The message window displays logs of the VC3000Pro Controller in real time. You can click Clear or
Save to clear or save messages in TXT format.
Figure 5-5 Message Window
5.6 Enable Edge Detection
Enable Edge Detection allows you to view the input edge signals and its quantity via Message
window in real time.
5.7 Reset Parameters
In Others, you can click Reset to reset all parameters you set in the VC3000Pro Controller.
5.8 Reboot Hardware
You can click Reboot to reboot the hardware, and the device will restart again.
