Panels and Connections

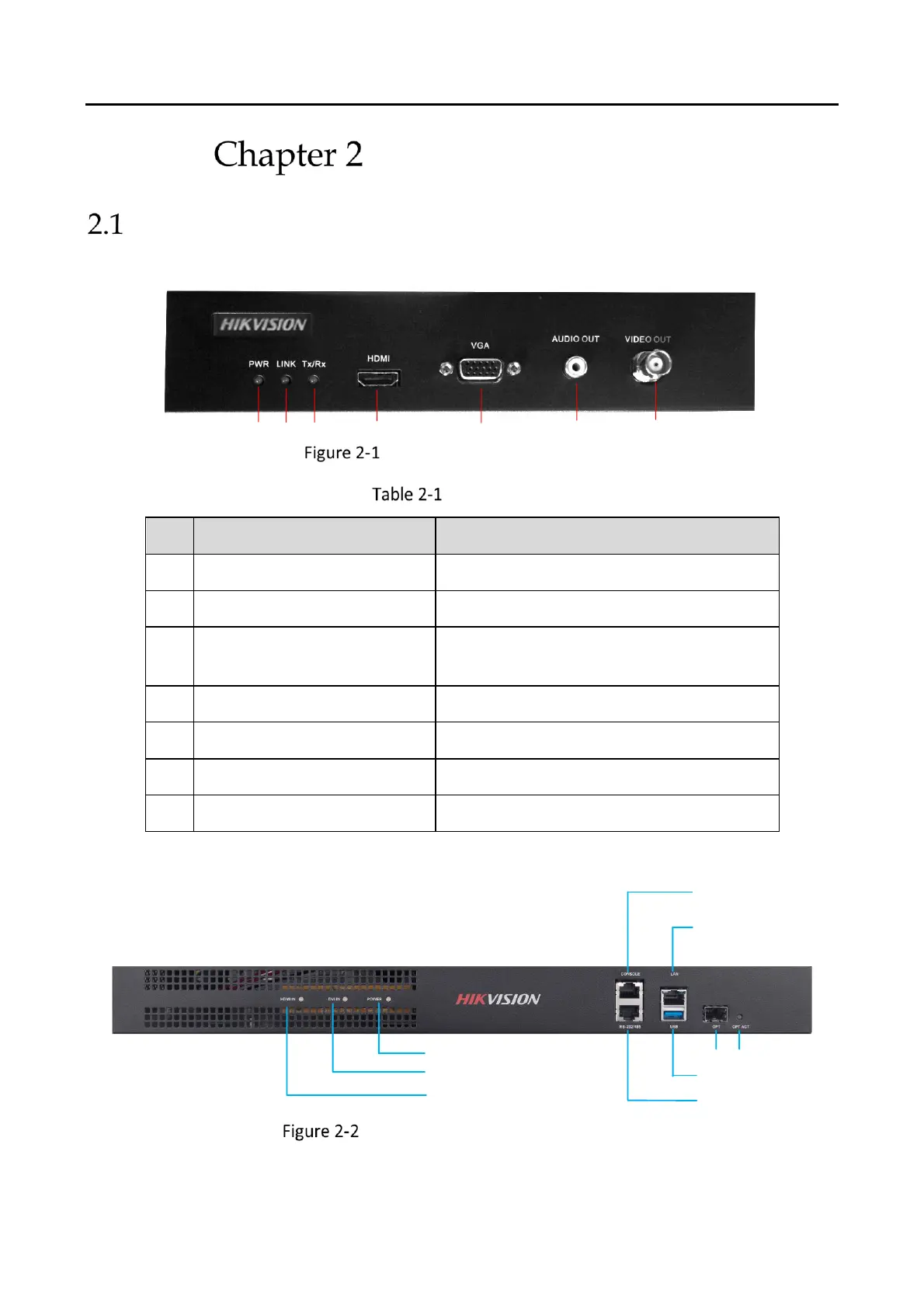

Front Panel
 Front panel of DS-6901UDI
Front Panel of DS-6901UDI
Description of DS-6901UDI Front Panel
 Front Panel of DS-6904/6908UDI
Front Panel of DS-6904/6908UDI
1 2 3 4 5 6 7
1
2
3
4
6
8
5
7
9
No.
LED Indicator & Interface
Description
1
POWER
Power indicator
2
LINK
Network connection indicator
3
Tx/Rx
Data transmitting/receiving status
indicator
4
HDMI video output
HDMI output for decoded video
5
VGA video output
VGA output of decoded video
6
Audio output
Audio output, 3.5mm connector
7
Video output
Video output, BNC connector
