DS-6900UDI Decoder Us er Manua l
78
2. On the Live View Parameters section, select the Enable radio button after Rules to display
the colored marks when the motion detection, face detection, or intrusion detection is
triggered. E.g., enabled as the rules are, and the face detection is enabled as well, when a
face is detected, it will be marked with a green rectangle on the live view.
Configure the VCA information.

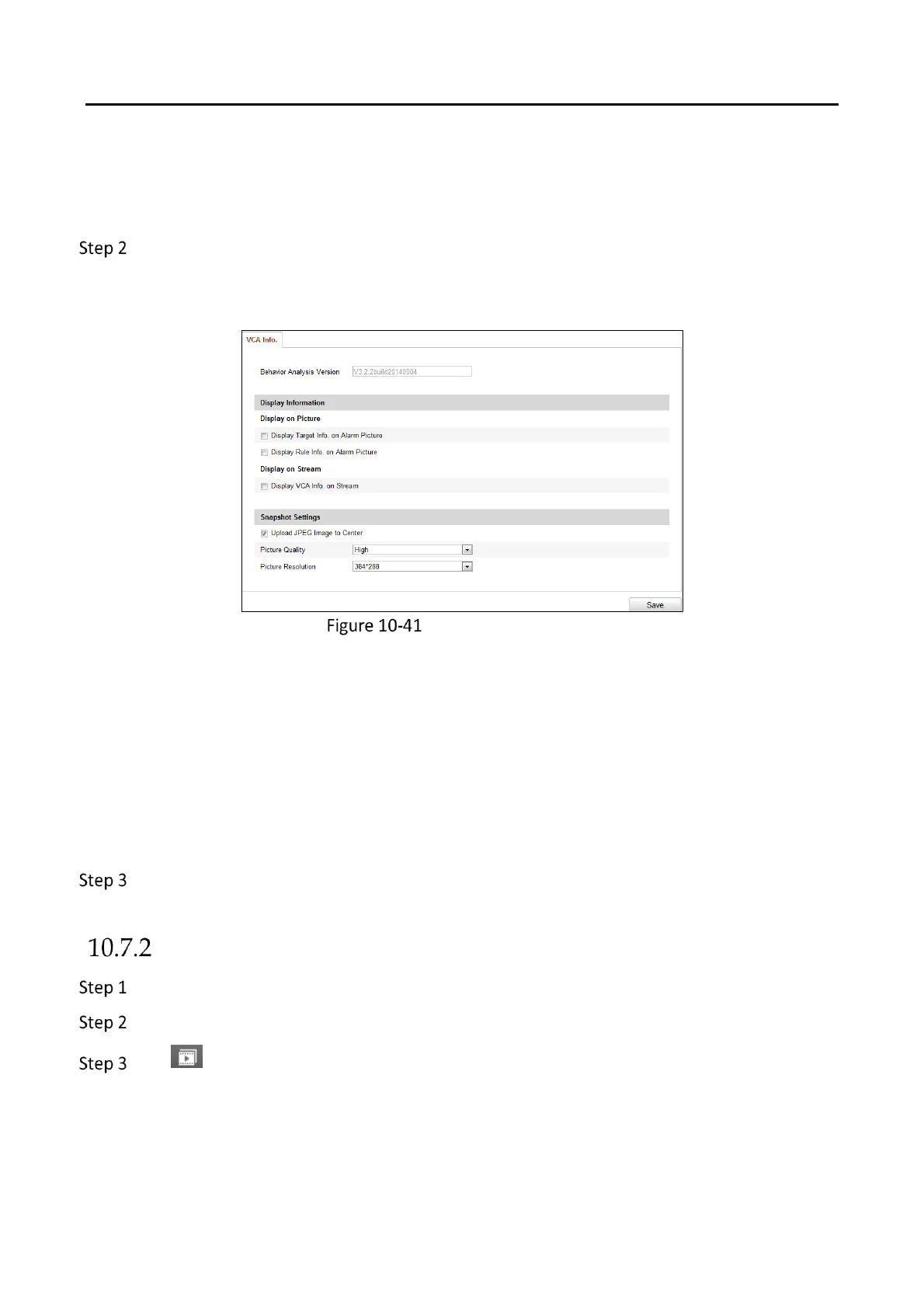

1. Click Configuration > VCA Configuration > VCA Info. to enter the VCA Information
interface.
VCA Information
2. On the Display Information section, check the checkboxes to enable corresponding
displays.
 Display Target info. on Alarm Picture: There will be a frame on the target on the
uploaded alarm picture if the checkbox is checked.
 Display Rule info. on Alarm Picture: The captured target and the configured area will be
framed on the alarm picture.
 Display VCA info. on Stream: The green frames will be displayed on the target if in a live
view or playback.
Configure the rules for VCA. Refer to the User Manual of Thermal Network Camera for the
specific operations.
Decoding Thermal Network Camera on the Video Wall
Add the thermal network camera to the video wall client software.
On the Video Wall interface, drag the added thermal network camera to the video wall.
Click to start live view and you can view the corresponding information on the live view
interface.
