HIKVISION DS-7200-SH Series User Manual

User Manual of DS-7200-SH/SV&DS-7300-SH Series DVR
128

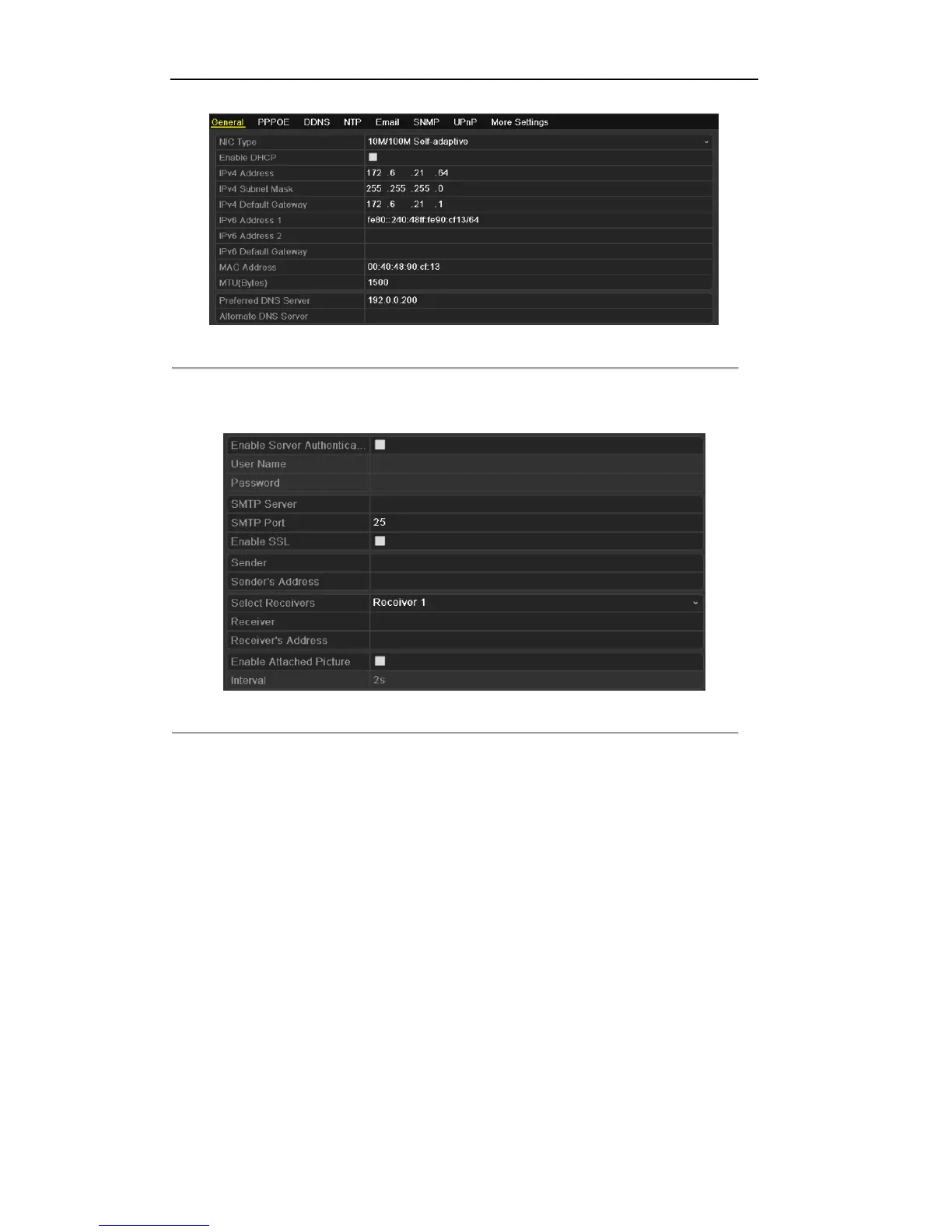

Figure 9.24 Network Settings Interface
3. Click the Apply button to save the settings.
4. Select the Email tab to enter the Email Settings interface.
Figure 9.25 Email Settings Interface
5. Configure the following Email settings:
Enable Server Authentication (optional): Check the checkbox to enable the server
authentication feature.
User Name: The user account of sender’s Email for SMTP server authentication.
Password: The password of sender’s Email for SMTP server authentication.
SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).
SMTP Port: The SMTP port. The default TCP/IP port used for SMTP is 25.
Enable SSL (optional): Click the checkbox to enable SSL if required by the SMTP server.
Sender: The name of sender.
Sender’s Address: The Email address of sender.
Select Receivers: Select the receiver. Up to 3 receivers can be configured.
Receiver: The name of user to be notified.
Receiver’s Address: The Email address of user to be notified.
Enable Attached Pictures: Check the checkbox of Enable Attached Picture if you want to send
email with attached alarm images.
Interval: The interval refers to the time between two actions of sending attached pictures.
