User Manual of DS-7200-SH/SV&DS-7300-SH Series DVR
166
• Transparent Channel: Connect a serial device directly to the device. The serial device will be controlled remotely
by the PC through the network.
Steps:
1. Enter the RS-232 Settings interface.
Menu > Configuration > RS-232

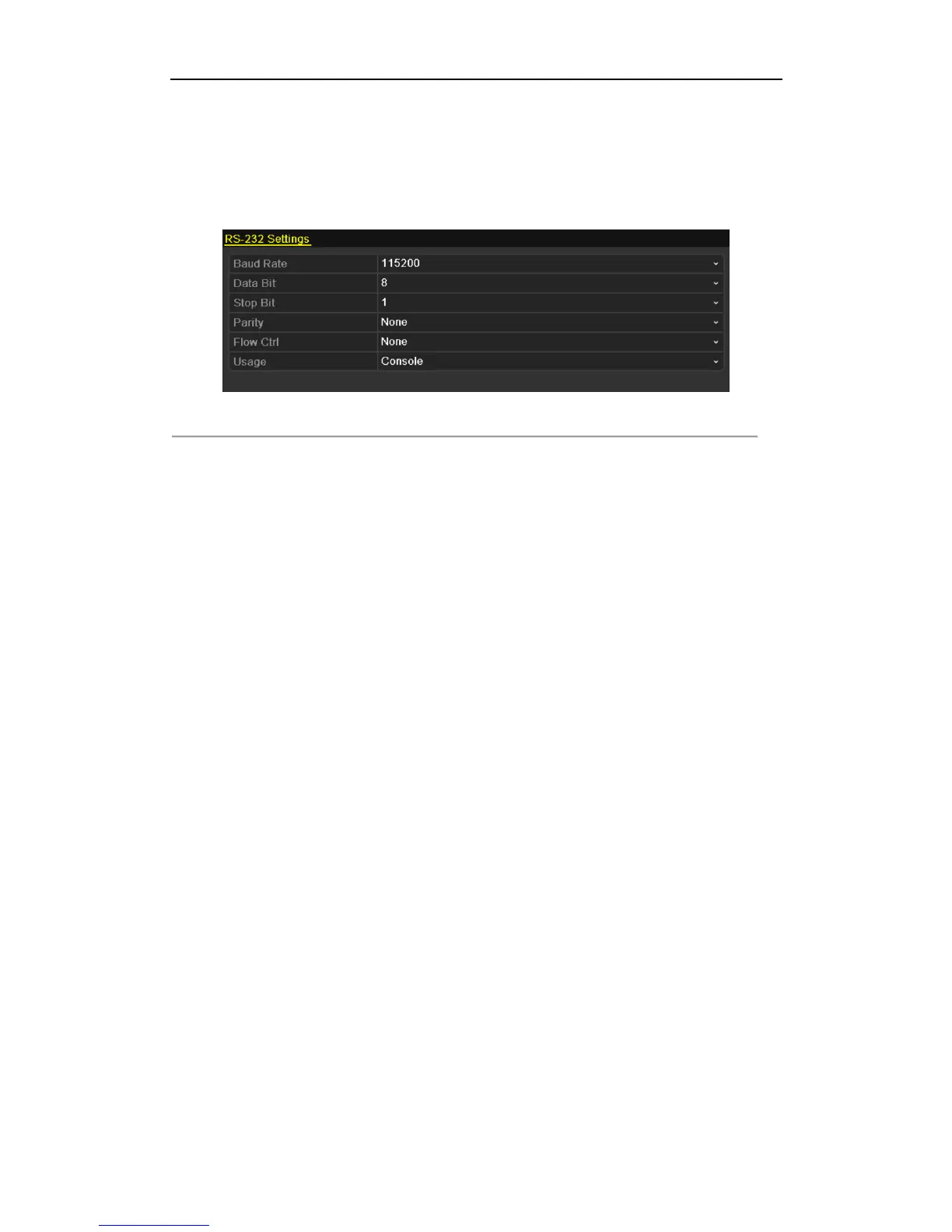

Figure 13.2 RS-232 Settings Interface
2. Configure RS-232 parameters, including baud rate, data bit, stop bit, parity, flow control and usage.
3. Click Apply to save the settings.
