User Manual of DS-7200-SH/SV&DS-7300-SH Series DVR
24

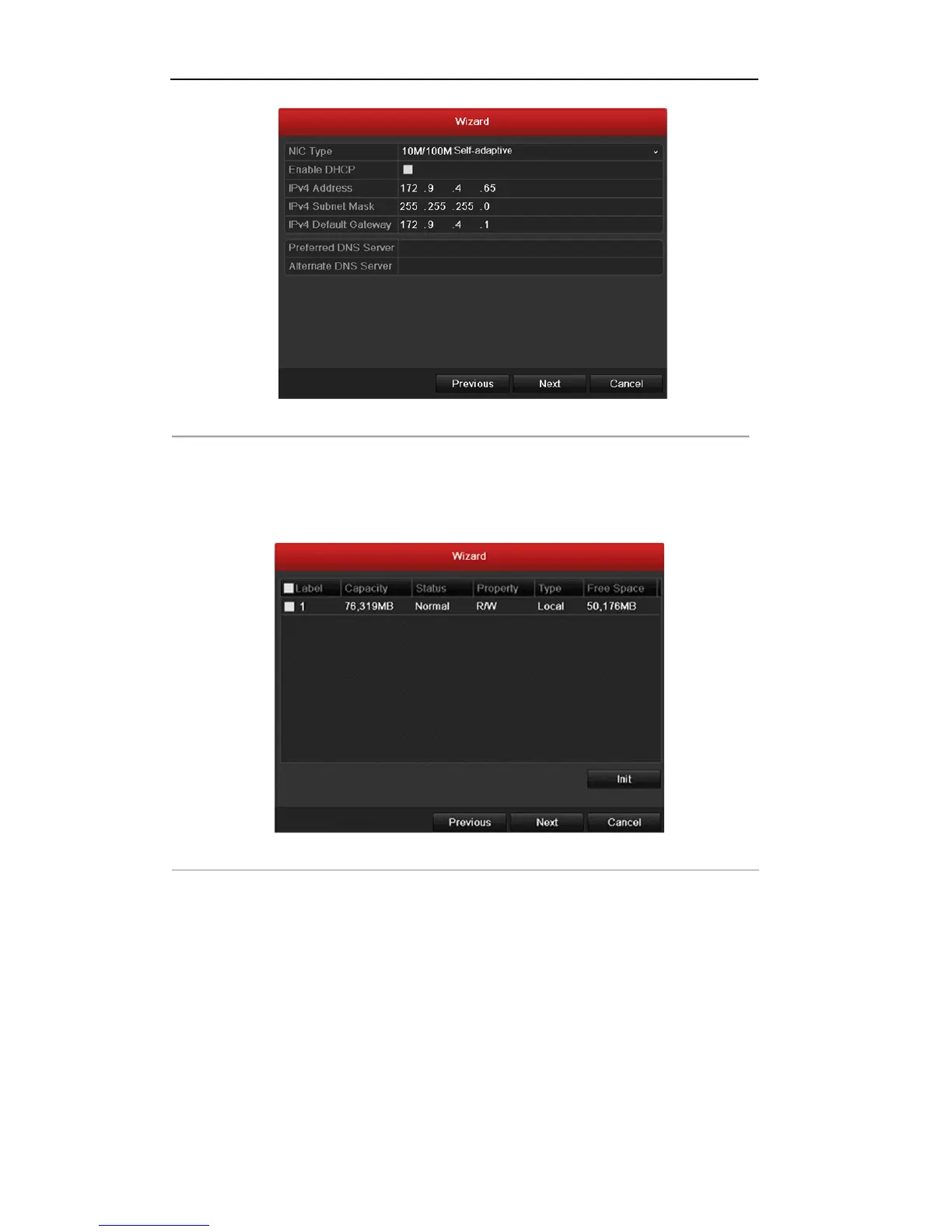

Figure 2.5 Network Configuration
Note: The DS-7200-SH/SV models provide one 10M/100Mbps self-adaptive network interface, and the
DS-7300HWI/HFI-SH models provide one 10M/100M/1000Mbps self-adaptive network interface.
6. Click Next button to enter the HDD Management window, shown in Figure 2.6.
To initialize the HDD, click the Init button. Initialization removes all the data saved in the HDD.
Figure 2.6 HDD Management
7. Click Next button to enter the Record Settings window, as shown in Figure 2.7.
1) Select the camera to configure.
2) Check the checkbox to enable Start Recording.
3) Select the recording mode to Normal or Motion Detection.
To Next Page
