User Manual of DS-7200-SH/SV&DS-7300-SH Series DVR
52
Task 2: Draw the Schedule
Steps:
1) Click the icon on the right to select a record type. Different recording types are available for
different models.
DS-7200-SH/SV: Normal, Motion and None.
DS-7300HFI-SH and DS-7300HWI-SH: Normal, Motion, Alarm, M/A, M&A and None.
Note: To enable Motion triggered recording, you must configure the motion detection settings. For
detailed information, refer to Chapter 8.1 and Chapter 8.2.
2) Use the mouse to drag and draw time periods.
Note: Up to 8 periods can be configured for each day.

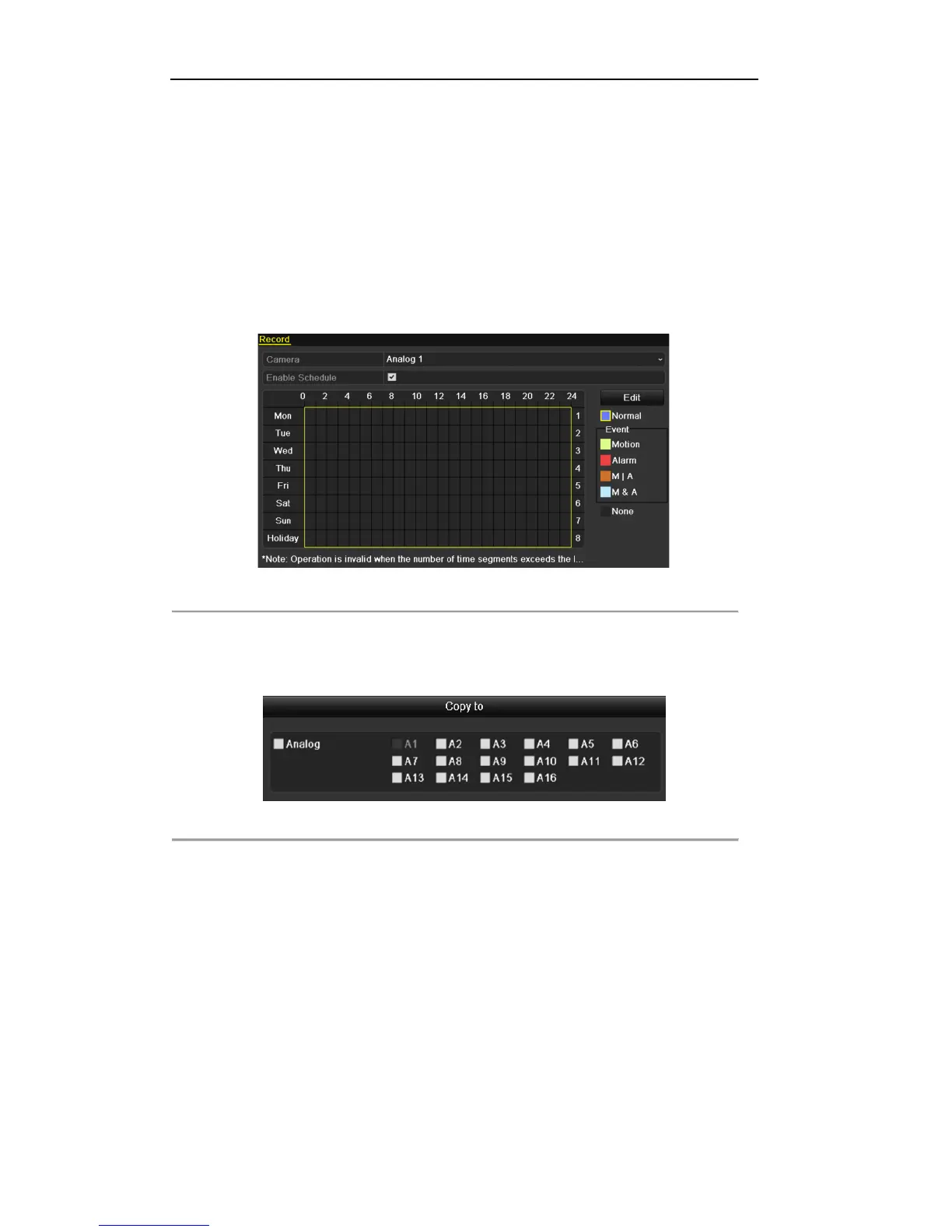

Figure 5. 10 Draw the Schedule
3) You can repeat the above steps to set schedule for other channels. If the settings can also be used to
other channels, click Copy to enter the Copy Camera interface and then choose the channel to
which you want to copy.
Figure 5.11 Copy Schedule to Other Channels
4) Click Apply in the Record Schedule interface to save the settings.
