User Manual of DS-7200-SH/SV&DS-7300-SH Series DVR
54

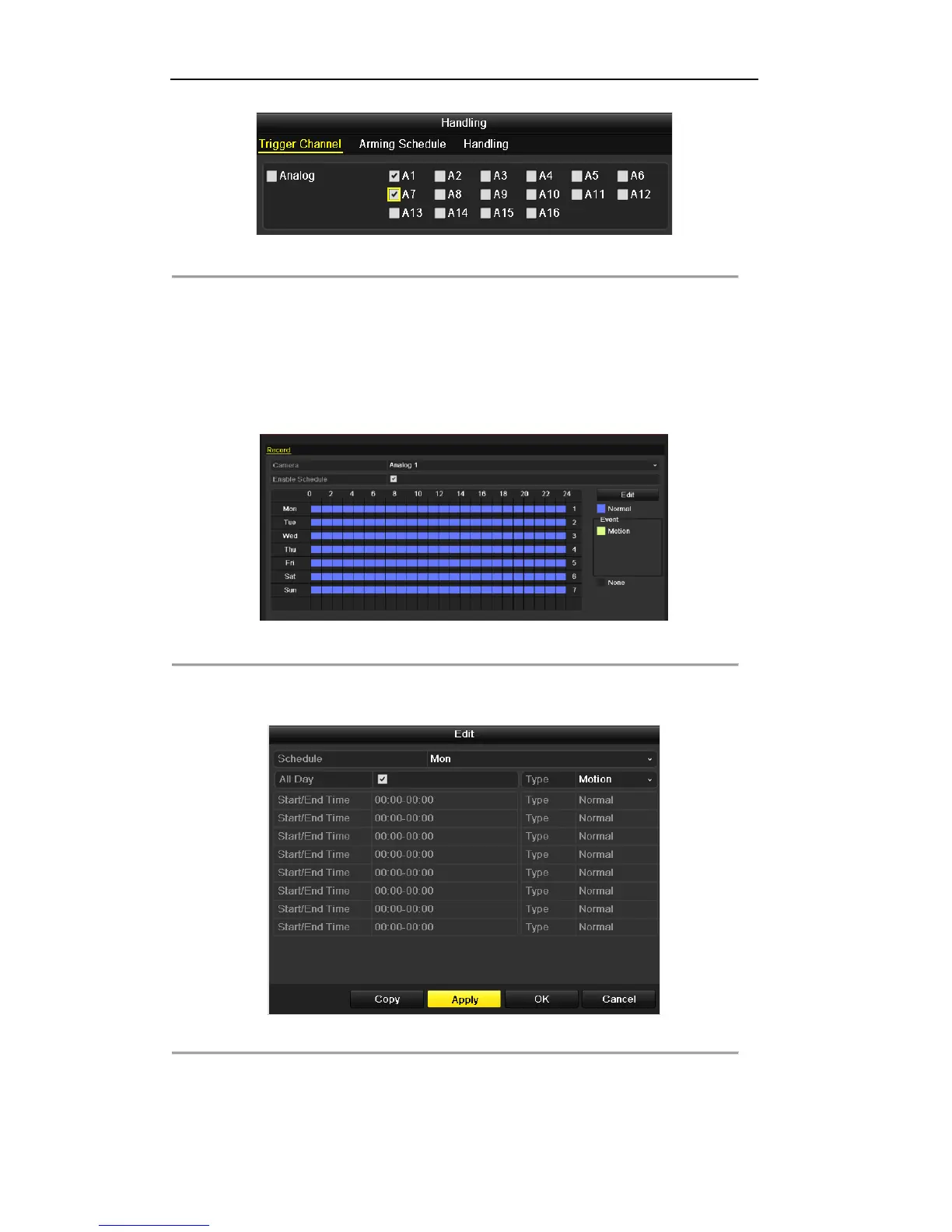

Figure 5.14 Motion Detection Handling
5) Select the channels which you want the motion detection event to trigger recording.
6) Click Apply to save the settings.
7) Click OK to back to the upper level menu.
8) Exit the Motion Detection menu.
3. Enter Schedule settings interface.
Menu> Record> Schedule>Record Schedule
Figure 5.15 Record Schedule
1) Check the checkbox after the Enable Schedule item.
2) Click Edit.
Figure 5.16 Edit Schedule- Motion Detection
3) In the message box, you can choose the day to which you want to set schedule.
4) Set the Type as Motion.
To Next Page
