User Manual of DS-7200-SH/SV&DS-7300-SH Series DVR
69

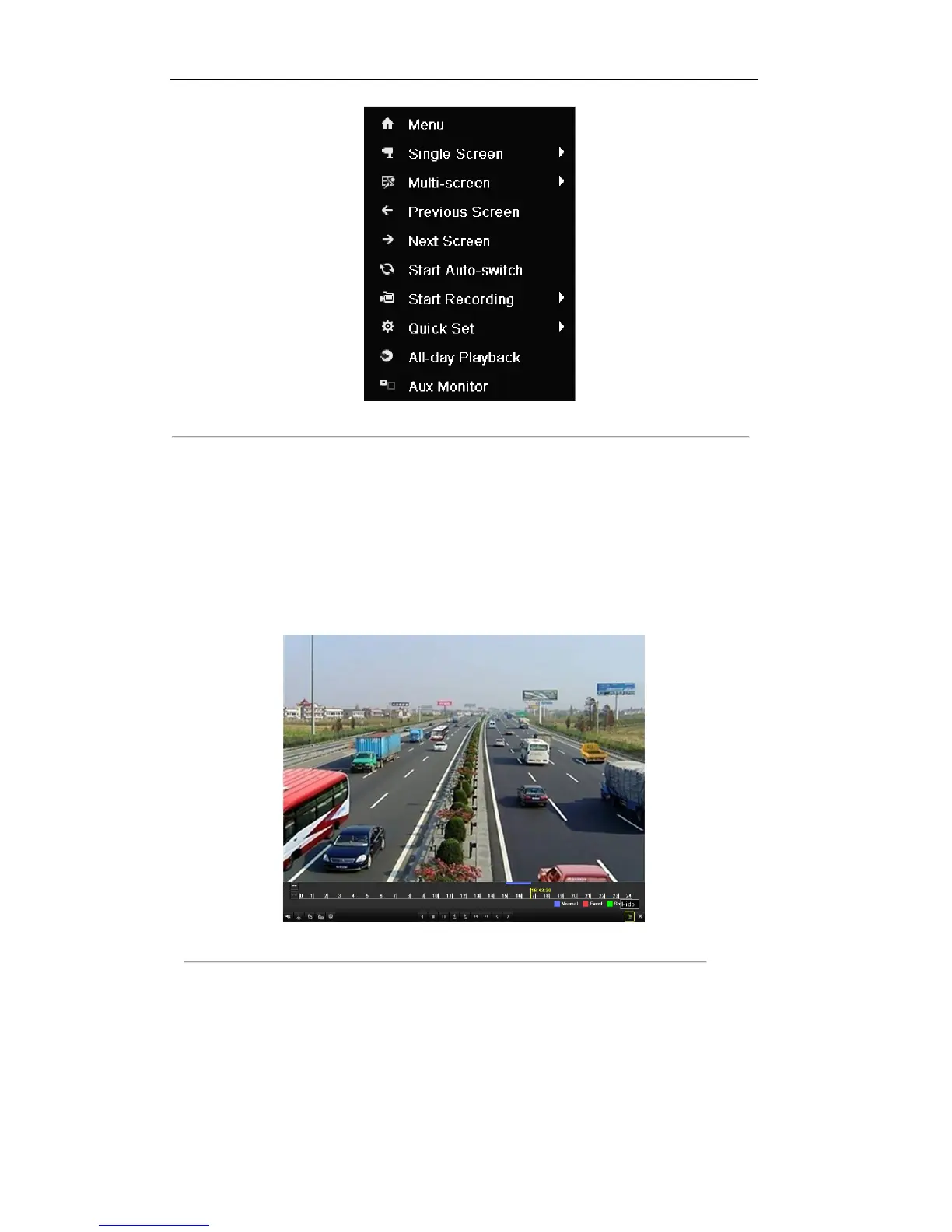

Figure 6.2 Right-click Menu under Live View
Press PLAY button on the IR remote control to play back record files of the channel under single-screen
live view.
Under multi-screen live view, record files of the top left channel (not masked) will be played back.
Note: Pressing numerical buttons will switch playback to the corresponding channels during playback
process.
2. Playback management.
The toolbar in the bottom part of Playback interface can be used to control playing progress, as shown in
Figure 6.3.
Figure 6.3 All-day Playback Interface
The channel and time selection menu displays by moving the mouse to the right of the playback interface.
Click the channel(s) if you want to switch playback to another channel or execute simultaneous playback of
multiple channels, as shown in Figure 6.4.
