Network Video Recorder User Manual
123

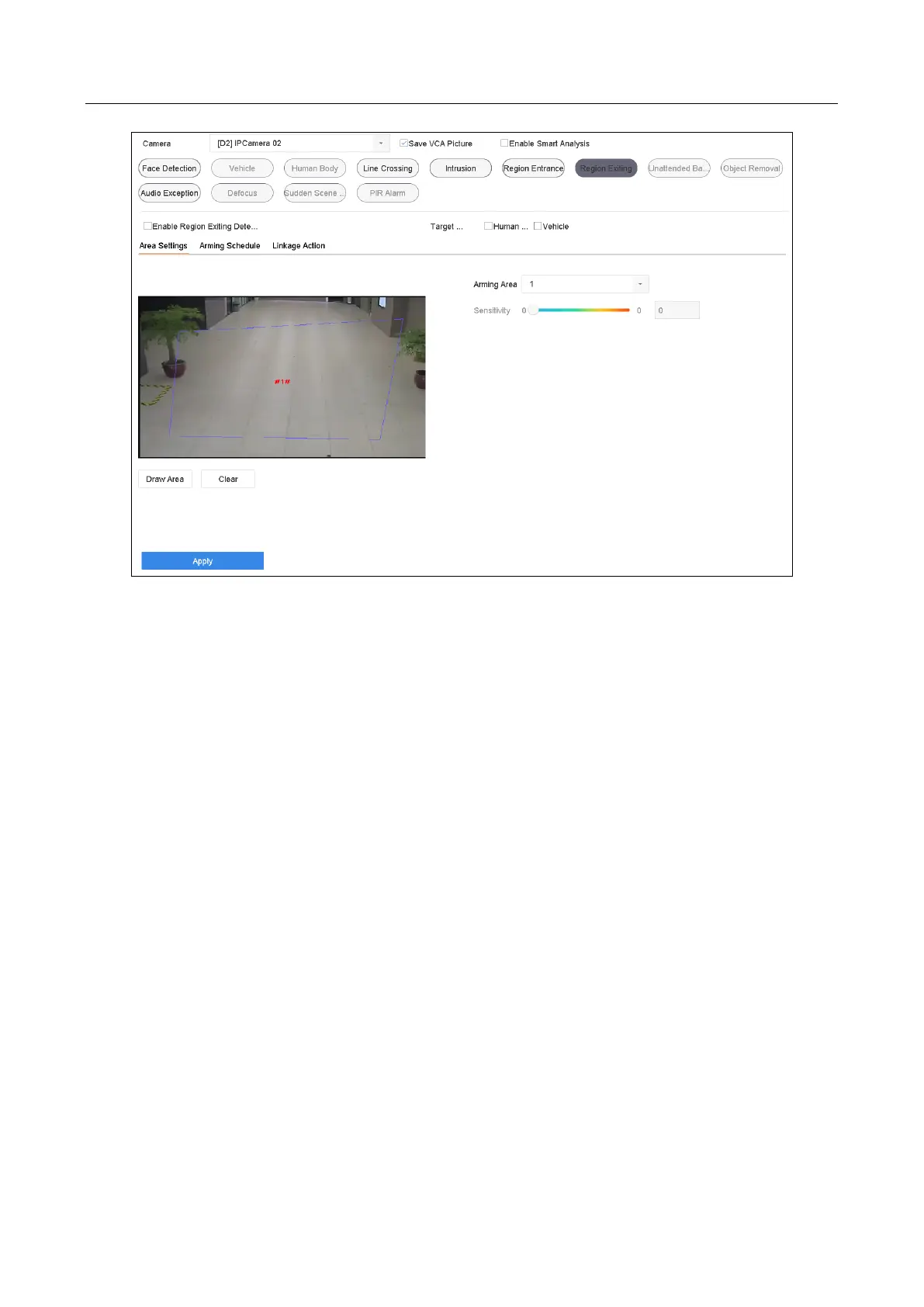

Figure 12-7 Region Exiting Detection
Step 3 Select a Camera to configure.
Step 4 Check Enable Region Exiting Detection.
Step 5 Optionally, check Save VCA Picture to save the captured pictures of region exiting detection.
Step 6 Select Target Detection as Human Body or Vehicle.
Human Body: Discard non-human body pictures and videos which are not triggered by region
exiting detection.
Vehicle: Discard non-vehicle pictures and videos which are not triggered by region exiting
detection.
Step 7 Follow the steps to set the detection rules and detection areas.
1) Select an Arming Region to configure. Up to 4 regions are selectable.
2) Drag the sliders to set Sensitivity.
Sensitivity: The higher the value is, the more easily the detection alarm can be triggered.
Its range is [0-100].
3) Click Draw Region and draw a quadrilateral in the preview window by specifying four
vertexes of the detection region.
Step 8 Set the arming schedule. Refer to Chapter 11.1 Configure Arming Schedule.
Step 9 Set the linkage actions. Refer to Chapter 11.2 Configure Alarm Linkage Actions.
Step 10 Click Apply.
