Network Video Recorder User Manual

140

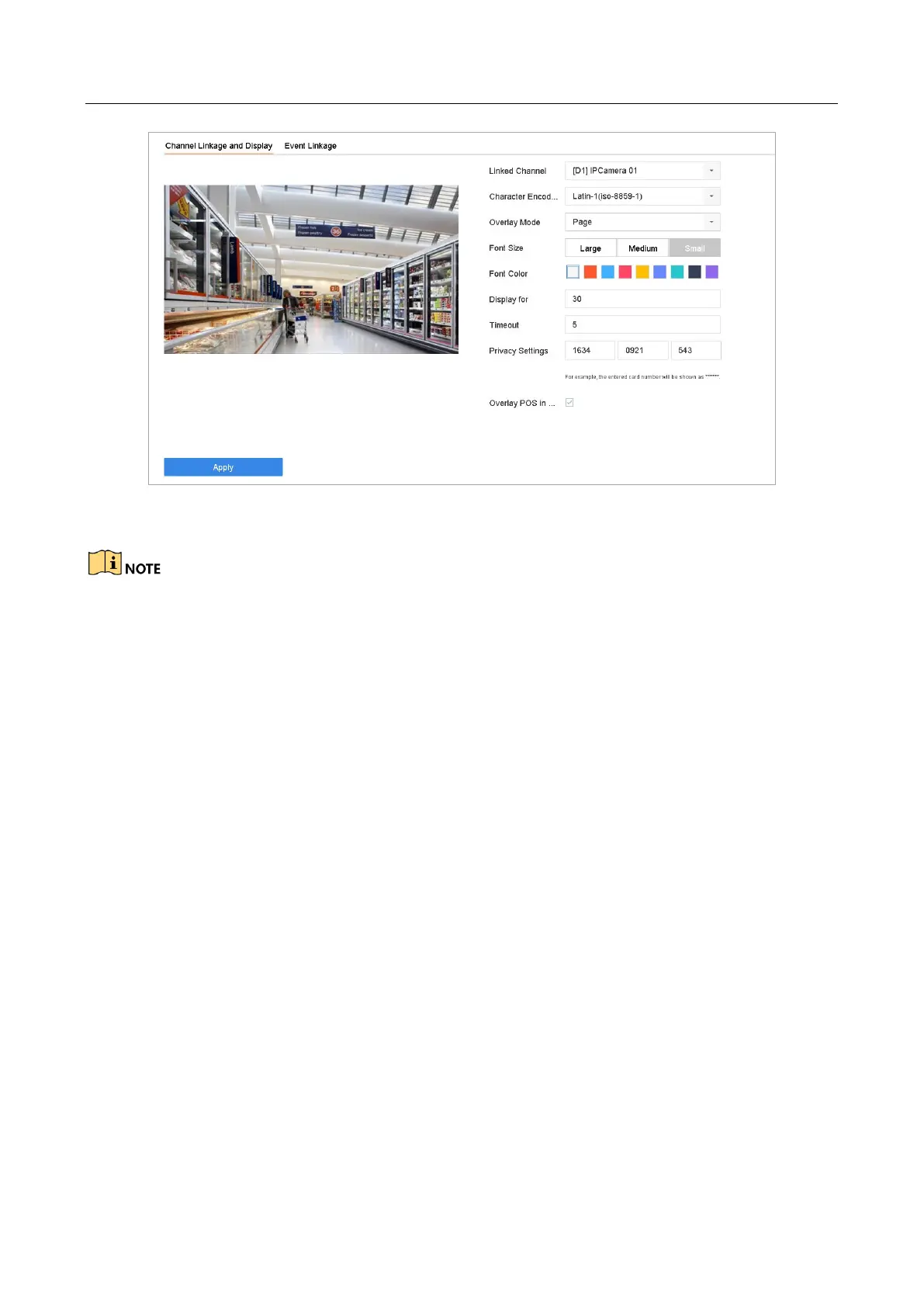

Figure 15-7 Overlay Character Settings

You can adjust the size and position of textbox on the preview screen of POS settings interface by

dragging the frame.

Step 7 Click Apply to activate the settings.

default chapter6
- Table of Contents6
