Chapter 1 Introduction
1.1 Front Panel

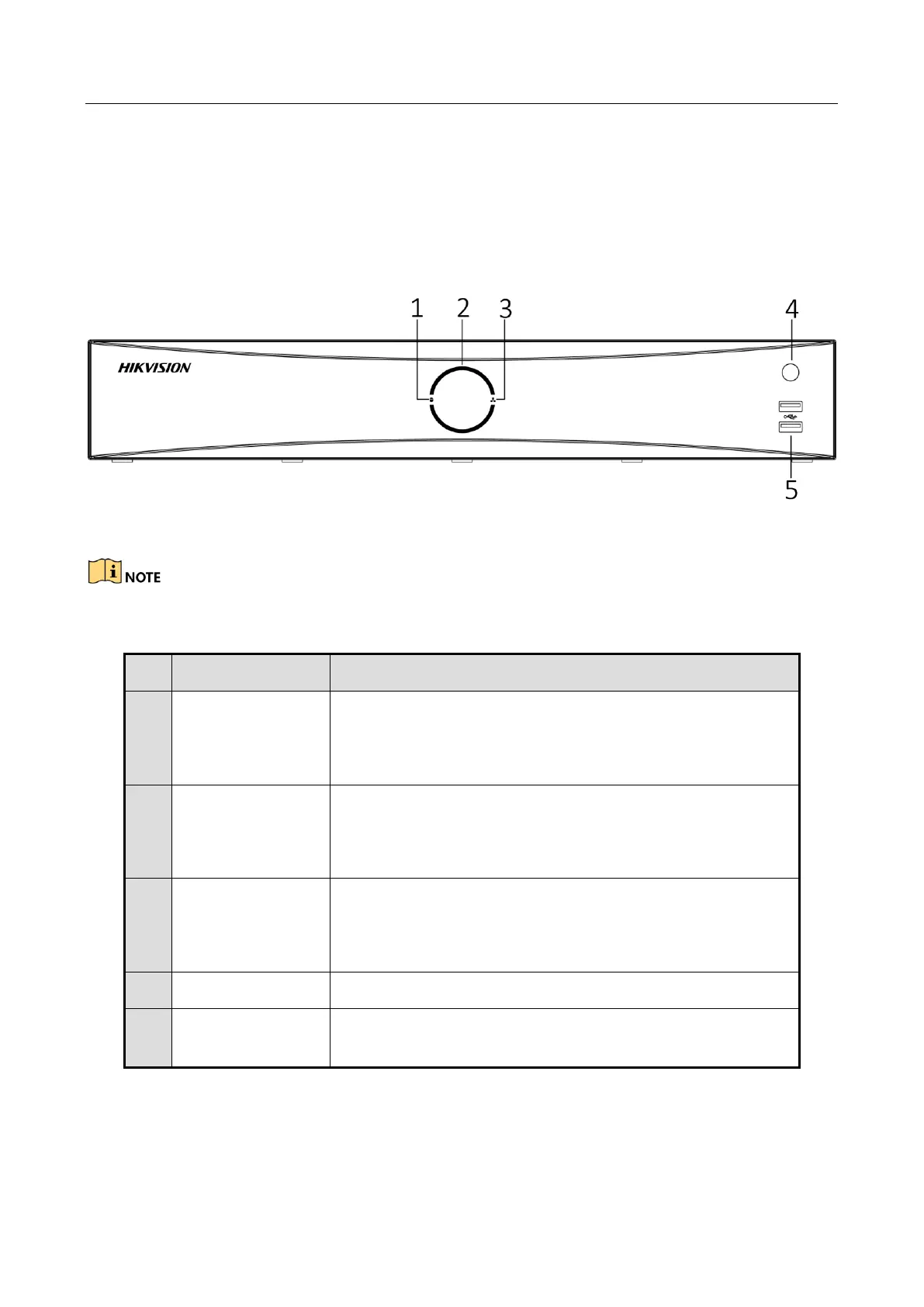

Figure 1-1 Front Panel
The DS-7600NXI series only have one USB 2.0 port.
Table 1-1 Panel Description
1.2 IR Remote Control Operations
The device may also be controlled with the included IR remote control, shown in Figure 1-2.
No.
Name
Function Description
1
HDD indicator

Solid white: HDD is abnormal.

Flashing white: HDD is reading/writing.

Unlit: No HDD is detected.
2
Power indicator

Solid white: Device is running normally.

Breathing light: Device is shutdown.

Unlit: No power supply is connected.
3
Network indicator

Solid white: Network connection is normal.

Flashing white: Device is transferring data via network.

Unlit: Network connection failed.
4
IR receiver
IR receiver for remote control.
5
USB
Universal Serial Bus (USB) 2.0 port for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
