Network Video Recorder User Manual
26
1.4.4 DS-7600NXI-I/P/S

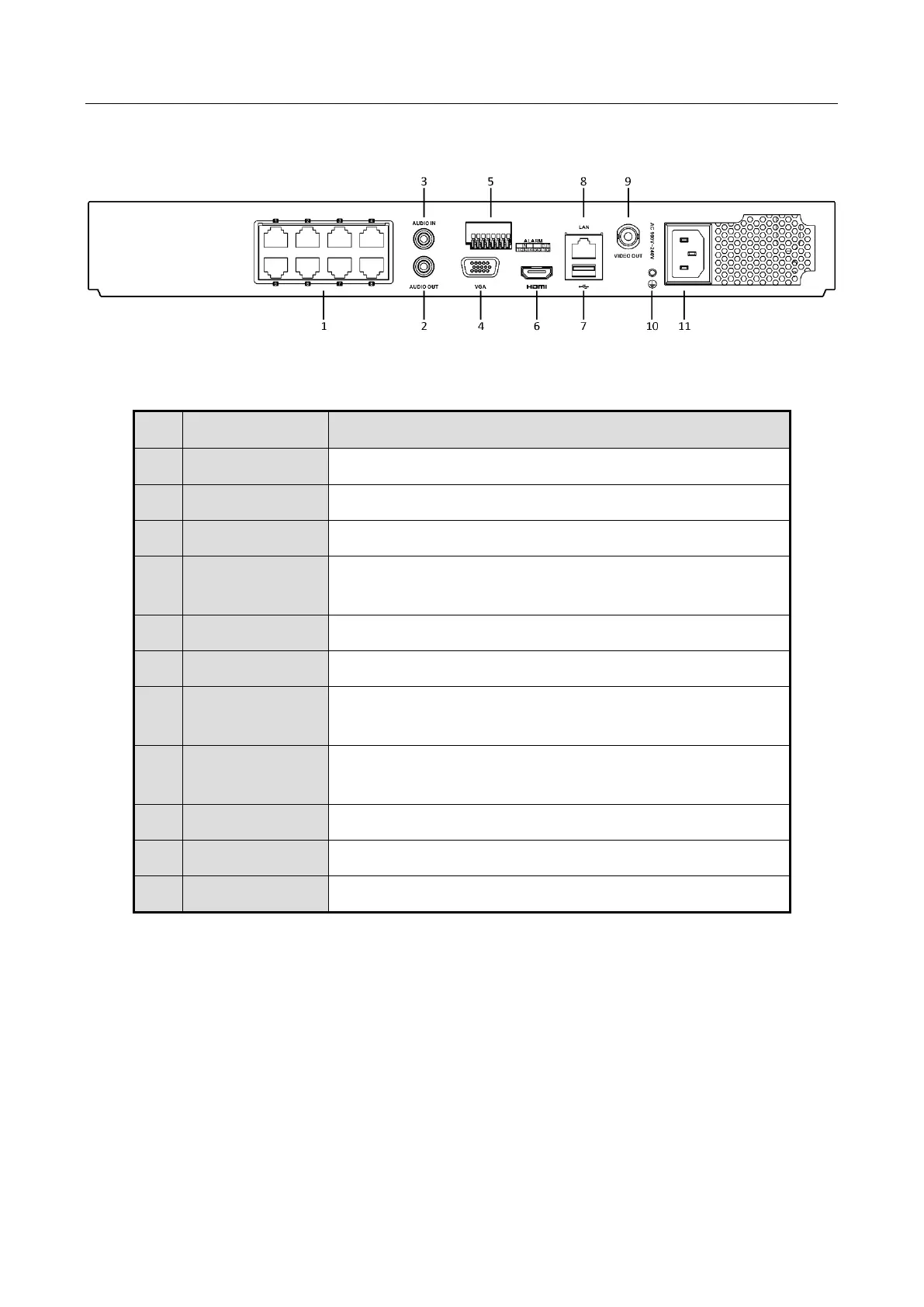

Figure 1-6 Rear Panel
Table 1-7 Panel Description
No.
Name
Description
1
PoE
RJ-45 10/100 Mbps self-adaptive Ethernet interfaces.
2
Audio out
RCA connector for audio output.
3
Audio in
RCA connector for audio input.
4
VGA
DB9 connector for VGA output. Display local video output
and menu.
5
Alarm in/out
Connector for alarm input/output.
6
HDMI
HDMI video output connector.
7
USB 3.0
Universal Serial Bus (USB) 3.0 port for additional device
such as USB mouse and USB Hard Disk Drive (HDD).
8
LAN
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface.
9
Video out
CVBS video output.
10
GND
Ground.
11
Power supply
100 to 240 VAC power supply
