Network Video Recorder User Manual
25
1.4.3 DS-7600NXI-I/S

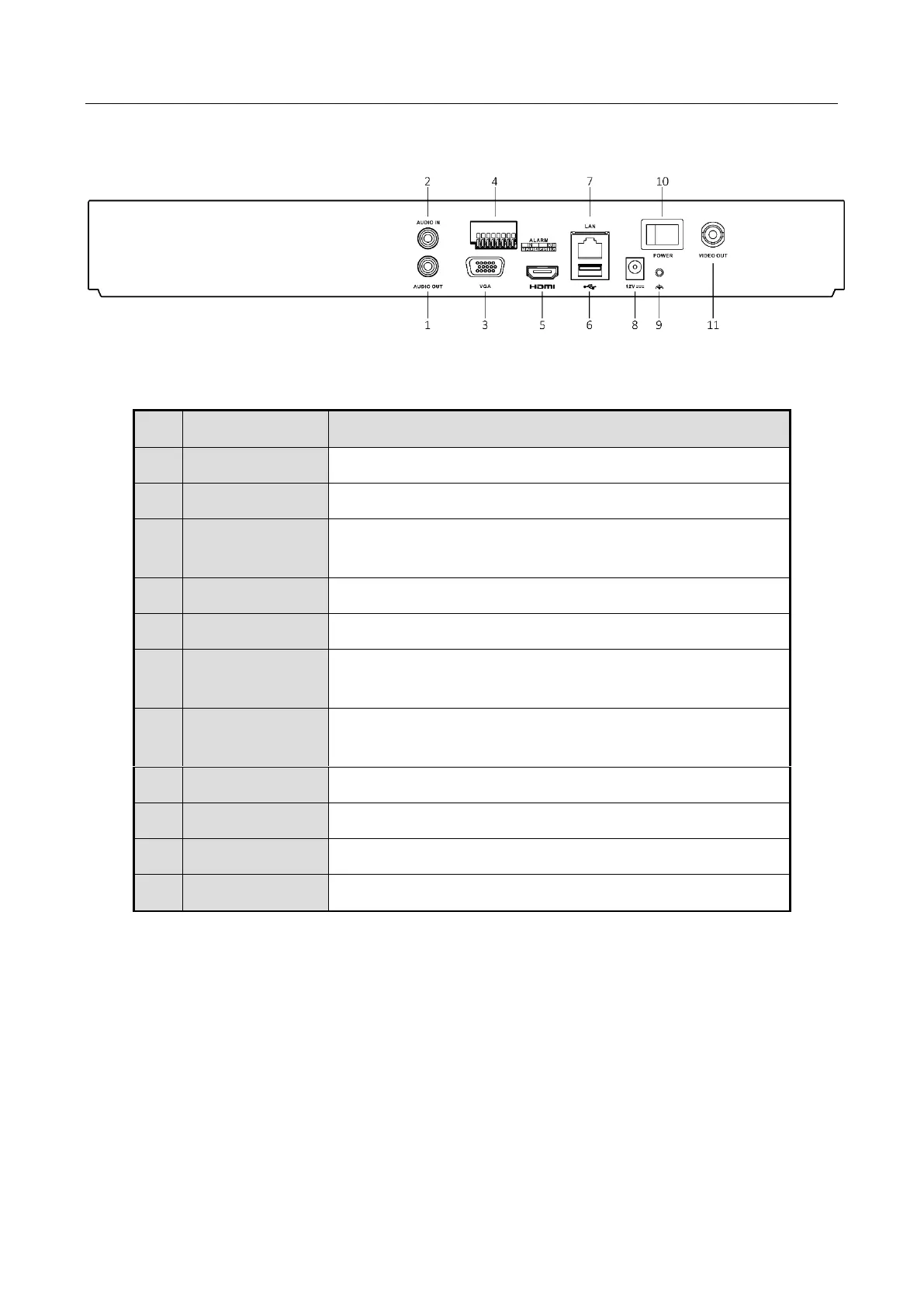

Figure 1-5 Rear Panel
Table 1-6 Panel Description
No.
Name
Description
1
Audio out
RCA connector for audio output.
2
Audio in
RCA connector for audio input.
3
VGA
DB9 connector for VGA output. Display local video output
and menu.
4
Alarm in/out
Connector for alarm input/output.
5
HDMI
HDMI video output connector.
6
USB 3.0
Universal Serial Bus (USB) 3.0 port for additional device
such as USB mouse and USB Hard Disk Drive (HDD).
7
LAN
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface.
8
Power supply
12 VDC power supply
9
GND
Ground.
10
Power switch
Switch for turning on/off the device.
11
Video out
CVBS video output.
