HIKVISION DS-7700NXI-I/S Series User Manual

Network Video Recorder User Manual
75
Step 7 Set the schedule for the POS event triggered recording. Refer to Chapter 7.4 Configure
Recording Schedule for details.
7.10 Configure Picture Capture
The picture refers to the live picture capture in continuous or event recording type.
Step 1 Go to Camera > Encoding Parameters > Capture.
Step 2 Set the picture parameters.
 Resolution: set the resolution of the picture to capture.
 Picture Quality: set the picture quality to low, medium or high.
 Interval: the interval of capturing live picture.
Step 3 Go to Storage > Capture Schedule.
Step 4 Select the camera to configure the picture capture.

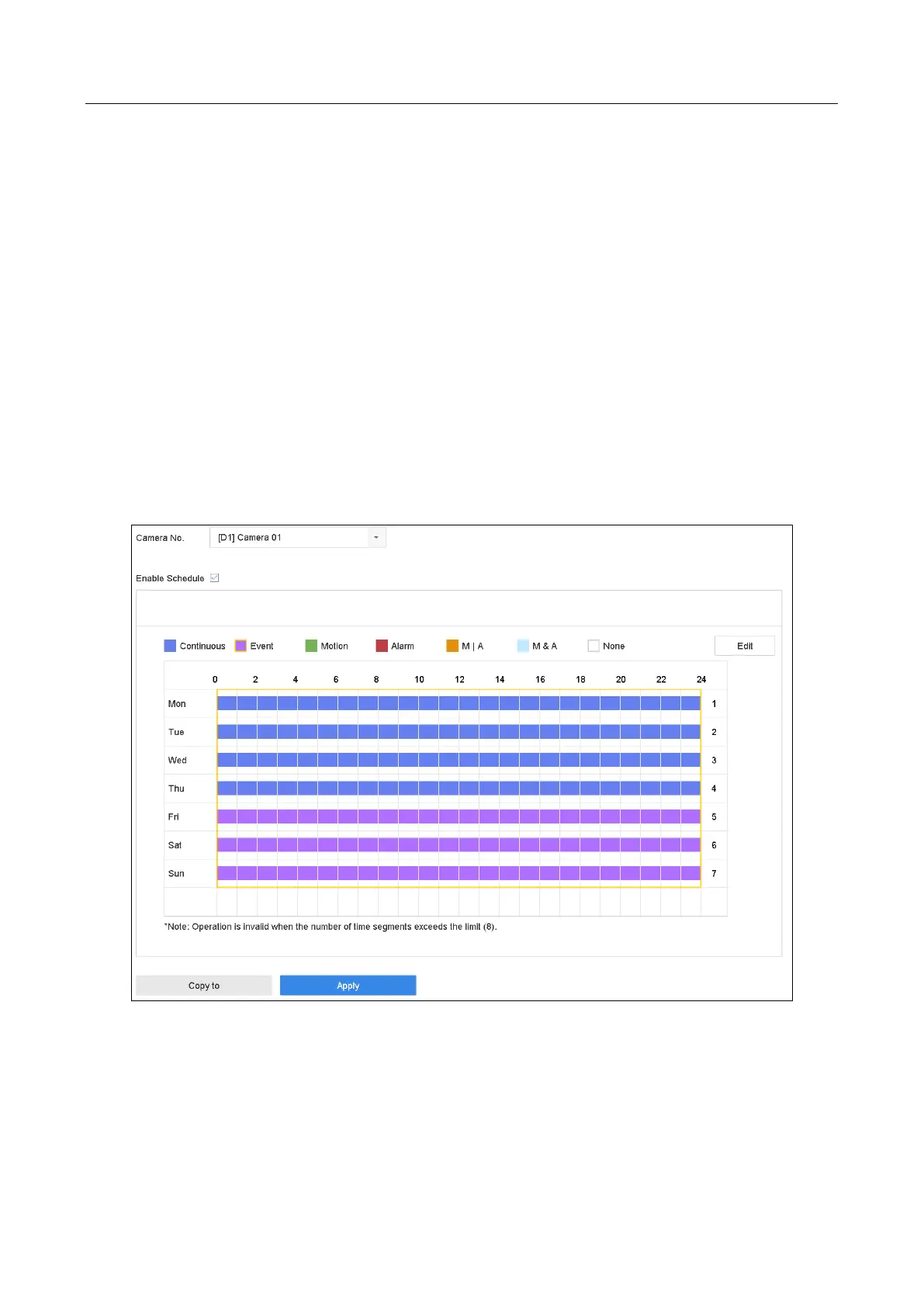

Figure 7-10 Set Picture Capture Schedule
Step 5 Set the picture capture schedule. Refer to Chapter 7.4 Configure Recording Schedule for details.
7.11 Configure Holiday Recording and Capture
Purpose:
