User Manual of Digital Video Recorder
235
14.2 Configuring General Settings
Purpose:
You can configure the BNC output standard, VGA output resolution, mouse pointer speed, etc.
Steps:
1. Enter the General Settings interface.
Menu > Configuration > General
2. Select the General tab.

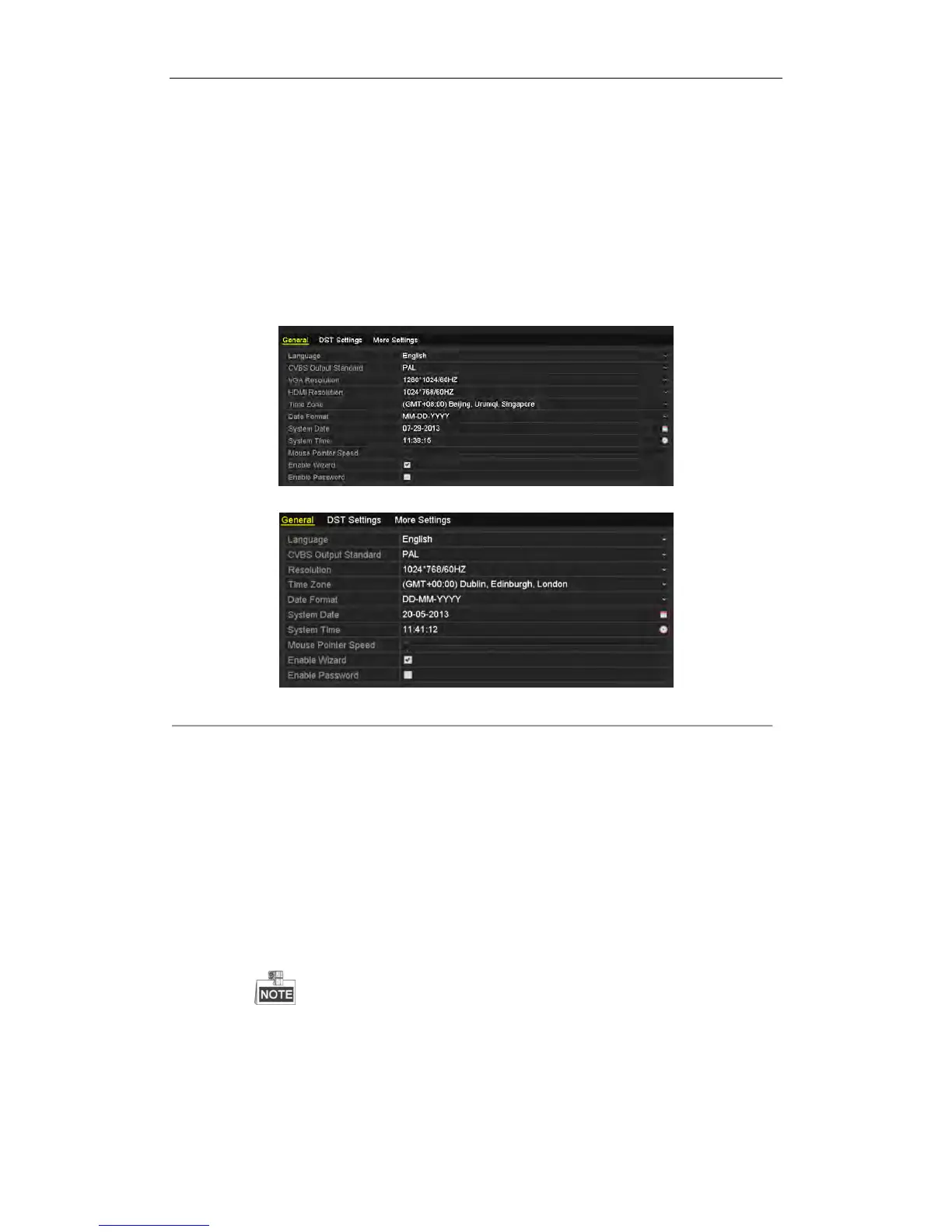

Figure 14. 2 General Settings Interface When HDMI/VGA Simultaneous Output Disabled
Figure 14. 3 General Settings Interface When HDMI/VGA Simultaneous Output Enabled
3. Configure the following settings:
• Language: The default language used is English.
• CVBS Output Standard: Select the CVBS output standard to NTSC or PAL, which must be the
same with the video input standard.
• VGA Resolution: Select the VGA output resolution, which must be the same with the resolution
of the monitor screen.
• HDMI Resolution: Select the HDMI resolution, which must be the same with the resolution of the
monitor screen.
• Resolution: Select the resolution for the VGA and HDMI output, which must be the same with the
resolution of the monitor screen.
When HDMI/VGA Simultaneous Output is disabled (Menu >Configuration >More Settings),
individual operation and settings can be achieved on VGA output and HDMI output.
• Time Zone: Select the time zone.
• Date Format: Select the date format.
• System Date: Select the system date.
