User Manual of Digital Video Recorder
77

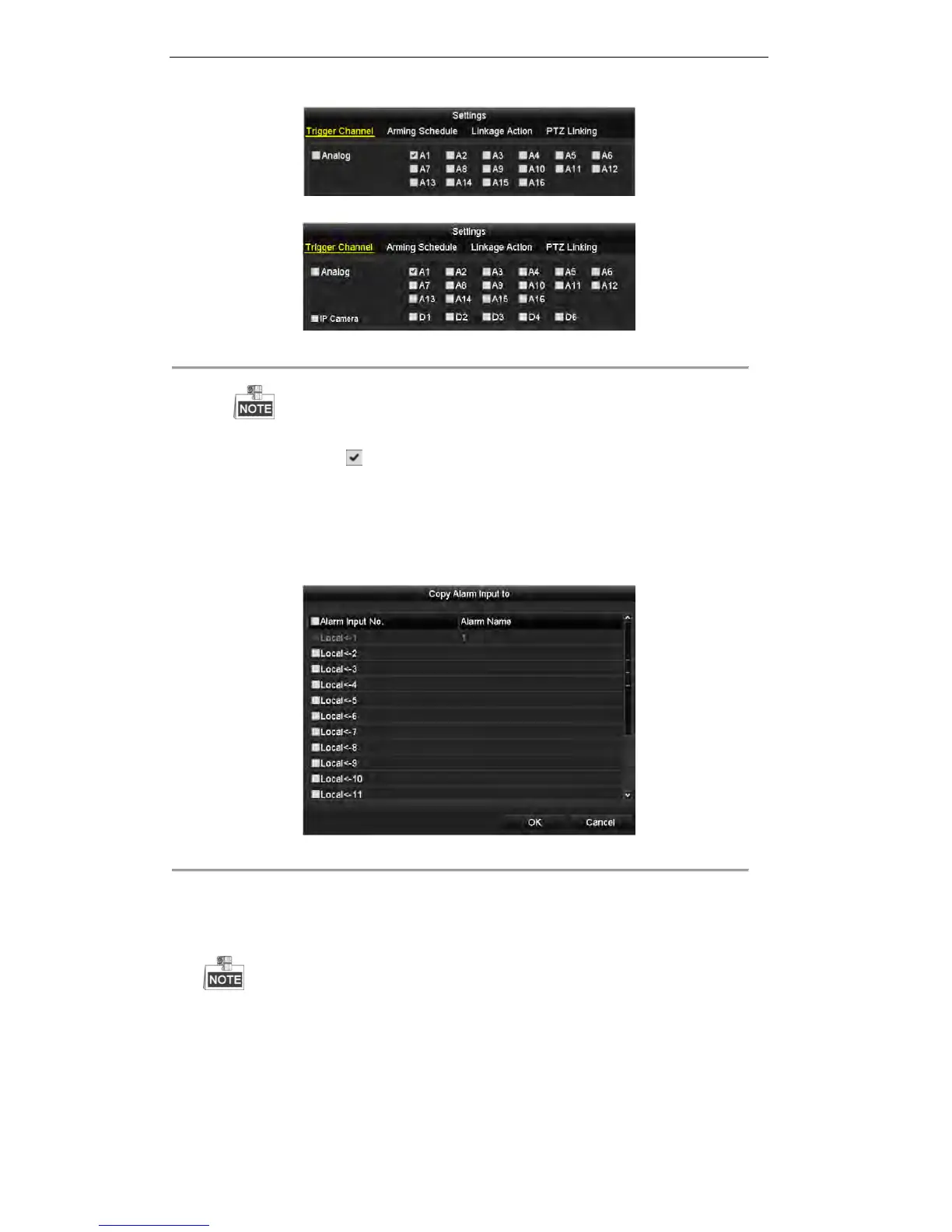

Figure 5. 24 Alarm Settings for DVR Series
Figure 5. 25 Alarm Settings for HDVR Series
IP Camera is supported by HDVR series only.
5) Check the checkbox to choose the alarm triggered recording/capture channel.
6) Click Apply to save settings.
7) Click OK to back to the upper level menu.
8) Click Apply in the Alarm Input interface to save the settings.
Repeat the above steps to configure other alarm input parameters.
If the setting can also be applied to other alarm inputs, click Copy and choose the alarm input number.
Figure 5. 26 Copy Alarm Input
3. Enter Record/Capture Schedule settings interface (Menu> Record> Schedule>Record/Capture Schedule).
For detailed information about record schedule settings, refer to step 2 in Chapter 5.2 Configuring
Record/Capture Schedule.
You need to select the Type as Alarm in record schedule settings.
