Storage System User Manual
38
1. Go to Hybrid SAN > Hybrid SAN.
2. Click the record volume name.
LUNs
3. Click of the LUN you want to delete.
4. Enter yes or YES.
5. Click OK. After it is deleted, data saved in the LUN is deleted and the LUN status is Free.

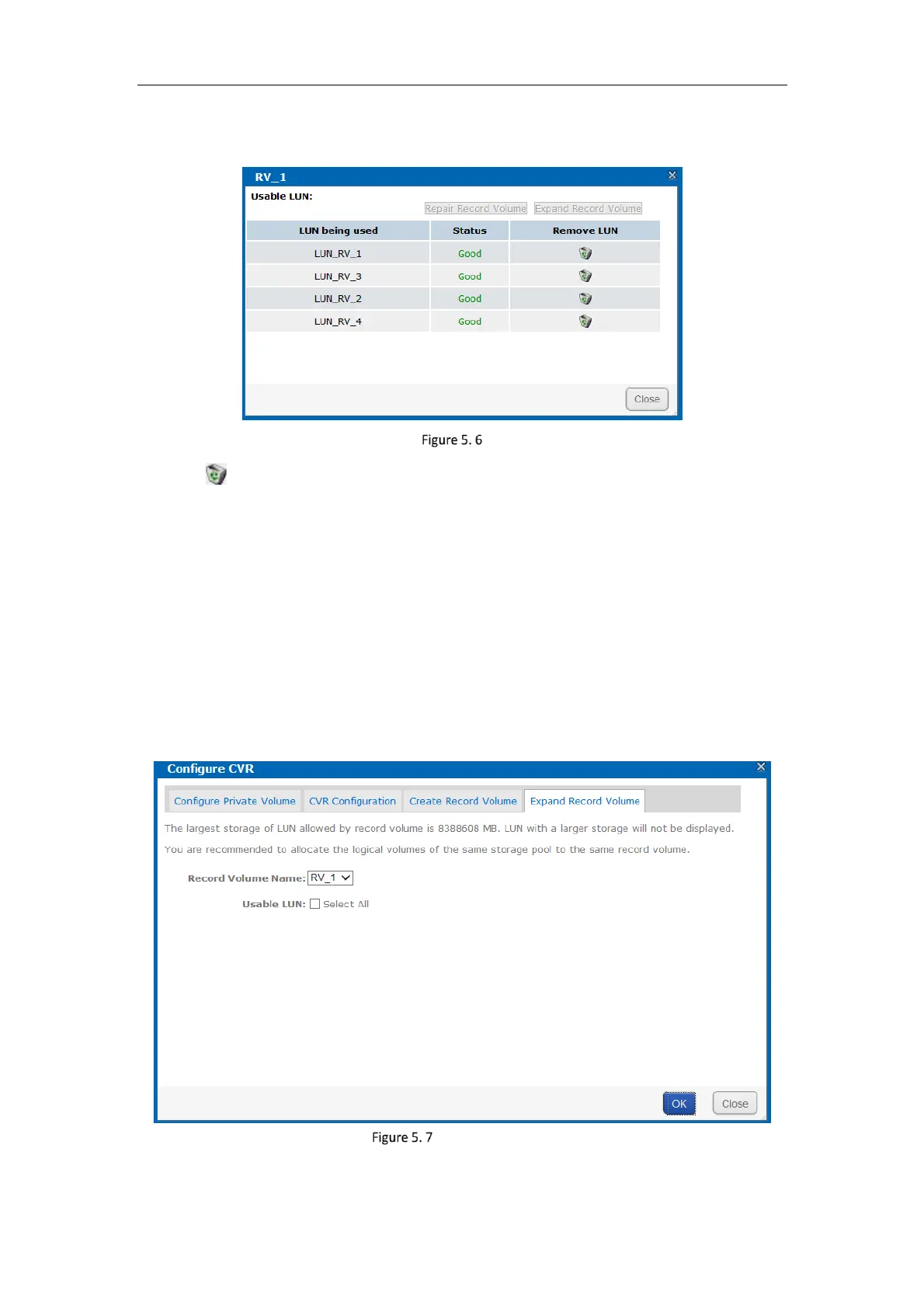

5.2.3.3 Expand Record Volume
Purpose:
When the record volume capacity is insufficient, you can use the free LUNs to extend it.
Steps:
1. Go to Hybrid SAN > Hybrid SAN.
2. Click Configure Hybrid SAN.
3. Click Expand Record Volume.
Extend Record Volume
4. Select the record volume you want to extend in Record Volume Name.
5. Select Usable LUN to extend.
To Next Page
