HIKVISION DS-K1T105 Series User Manual

Access Control Terminal·User Manual
12
4.3 The Wiring of Electric Lock and Door Contact
4.3.1 The Wiring of Electric Lock

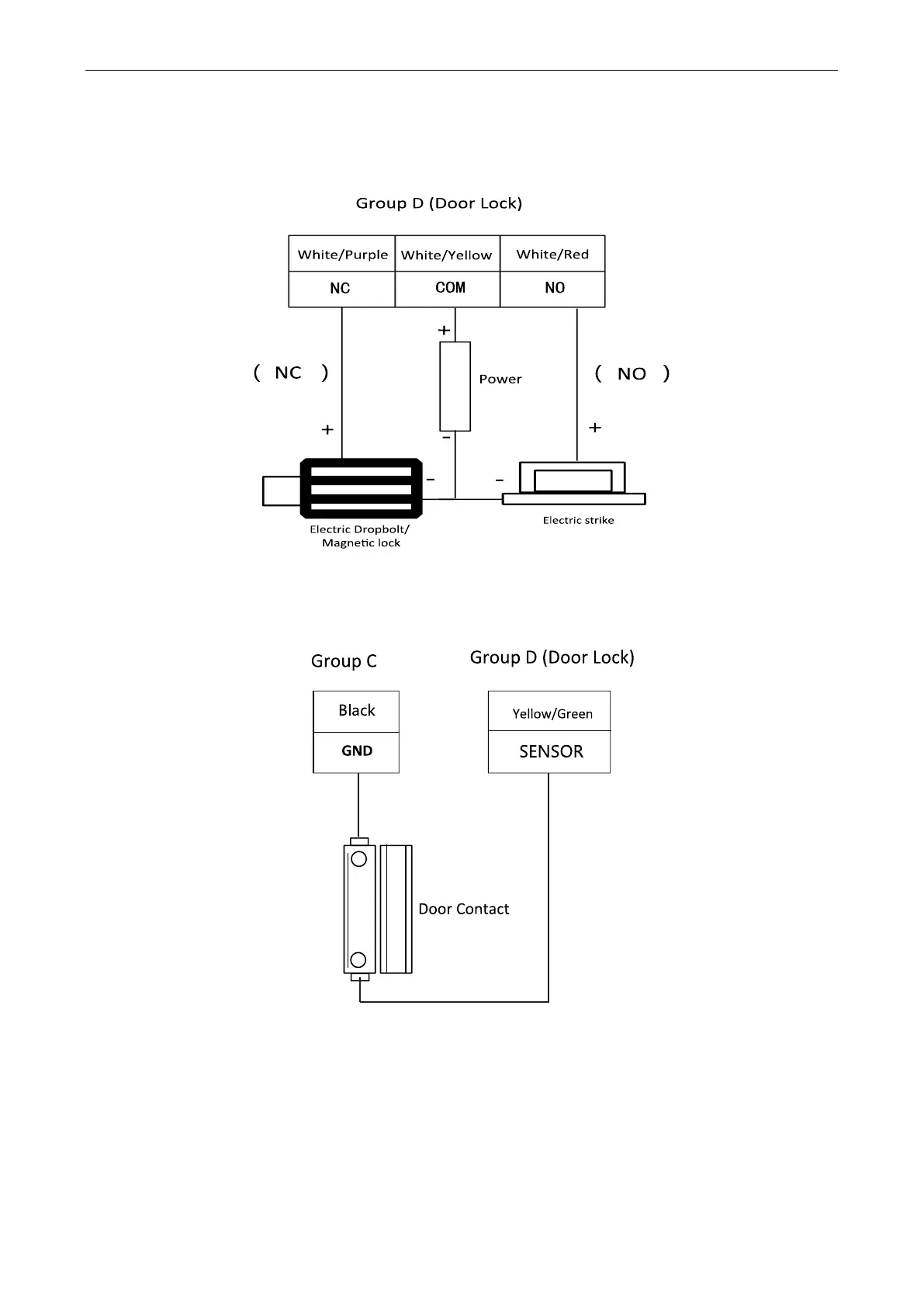

Figure 4-4 The Installation of Electric Dropbolt, Magnetic Lock, and Electric Strike
Note: Signal input interface of the door status (DOOR_NC, DOOR_COM, DOOR_NO) is used to recognize whether the door is locked.
If the NC interface is connected for opening door, the NO interface can only be connected for locking door.
4.3.2 The Wiring of Door Contact
Figure 4-5 The Installation of Door Contact
