2 Appearance
2.1 Appearance of DS-K1T105 Series Model
Please refer to the following content for detailed information of the DS-K1T105 series model.

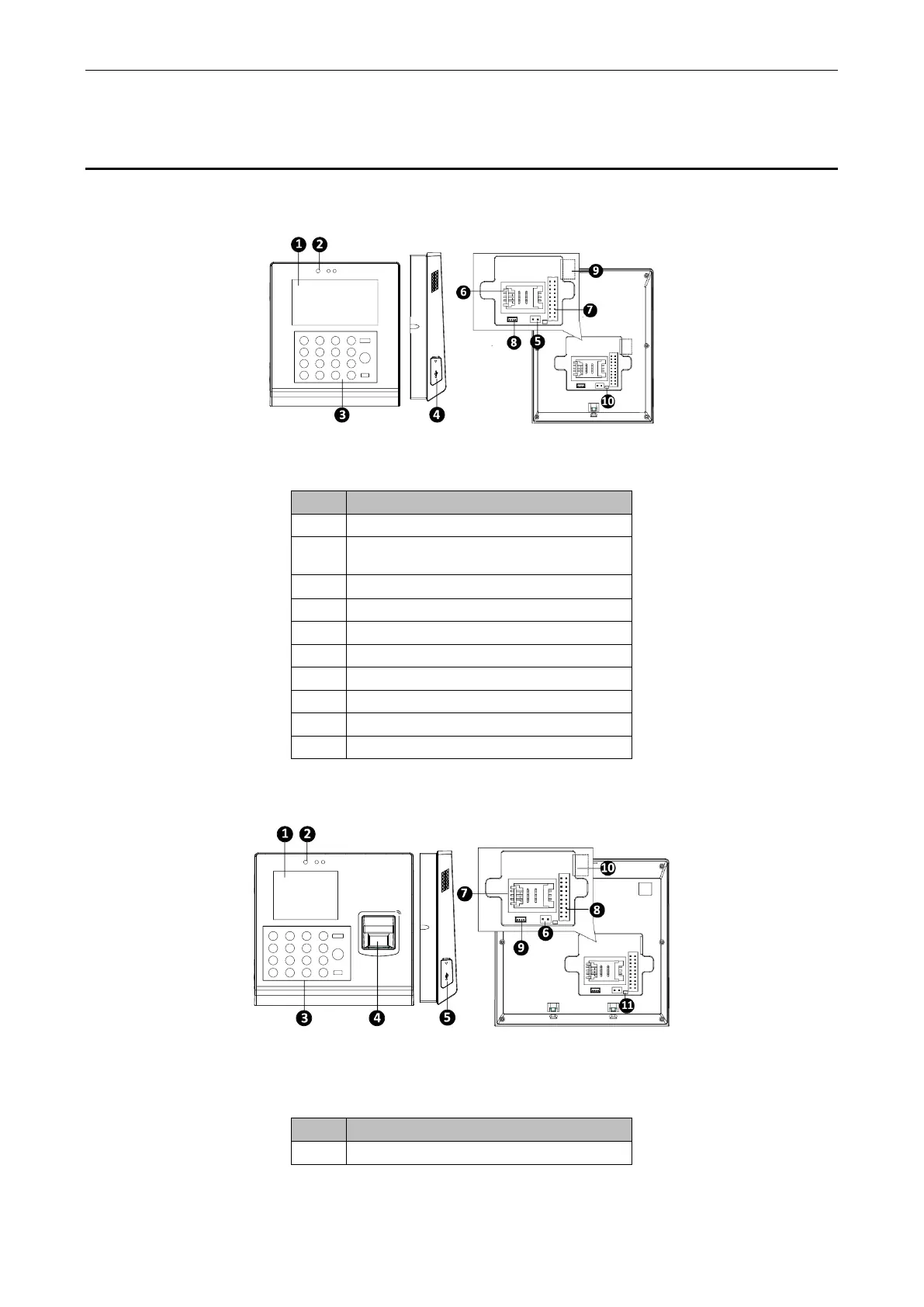

Figure 2-1 Appearance of DS-K1T105 Series Model
Table 2-1 Description of DS-K1T105 Series Model
No.
Description
1
2.8-Inch LCD Display Screen
2
HD Camera with 2 MP (only DS-K1T105E/M/ -C
support)
3
Keypad
4
USB 2.0 Interface
5
Power Interface
6
PSAM Card Slot
7
External Wiring Terminals
8
Serial Port
9
Ethernet Port
10
Tampering Prevention Switch
2.2 Appearance of DS-K1T200Series Model
Please refer to the following content for detailed information of DS-K1T200 series model
Figure 2-2 Appearance of DS-K1T200 IP-Based Fingerprint Access Control Terminal
2.2.1 Description of Components
Table 2-2 DS-K1T200 IP-Based Fingerprint Access Control Terminal Components
No.
Description
1
2.8-Inch LCD Display Screen
