4.2 Wire Normal Device
You can connect the terminal with normal peripherals.

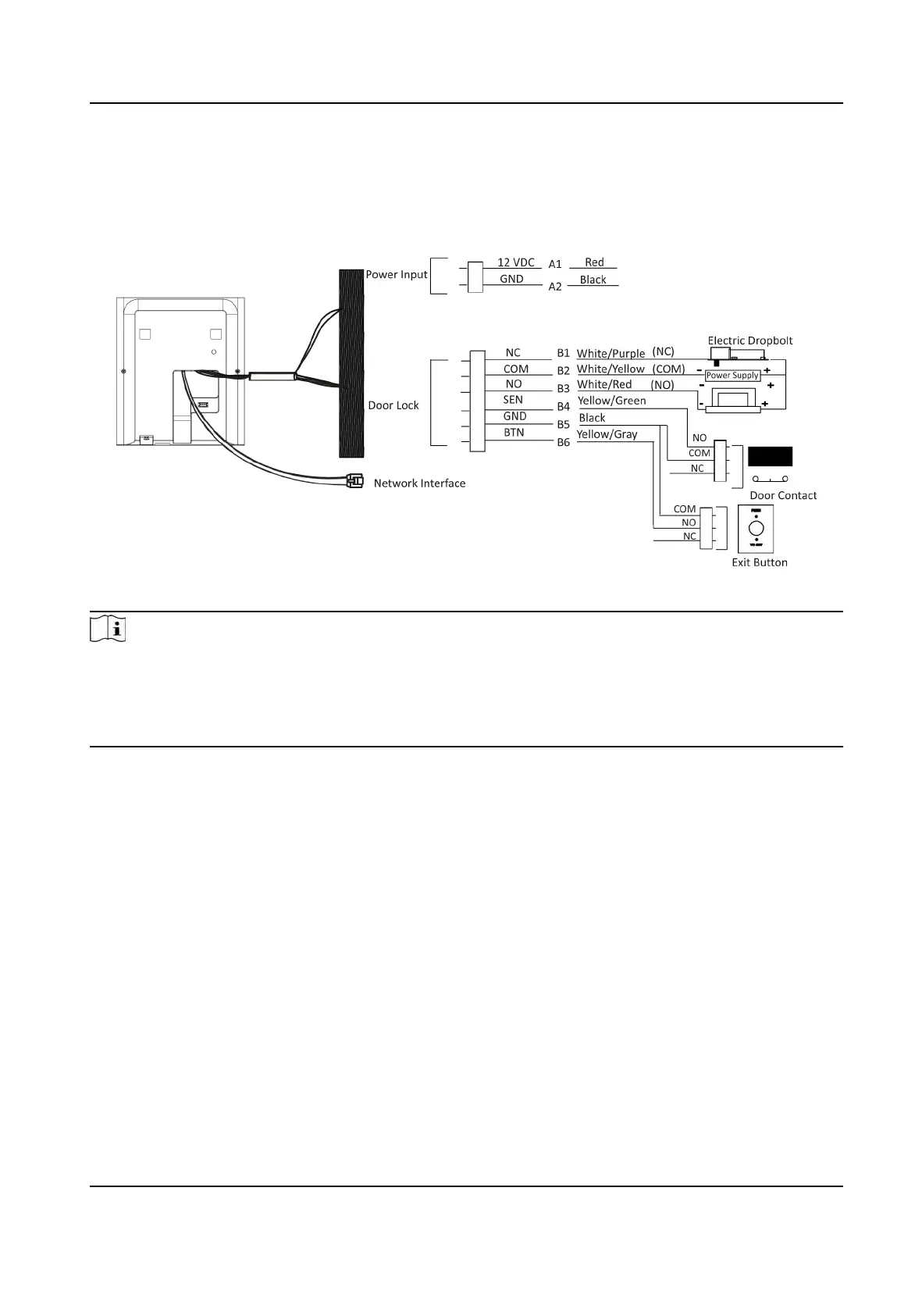

Figure 4-1 Device Wiring
Note
●
Do not wir
e the device to the electric supply directly.
●
When connecng door contact and exit buon, the device should use the same common ground
connecon.
●
The suggested external power supply for door lock is 12 V, 1 A
