Chapter 8 Serial Port Conguraon
8.1 Set RS-485
Set RS-485 parameters if the device needs to be connected to other peripheral devices controlled
by RS-485 serial port.
Before You Start
The corresponding device has been connected via the RS-485 serial port.
Steps
1.
Go to
Conguraon → Device Conguraon → System Conguraon → Serial Port
Parameters .

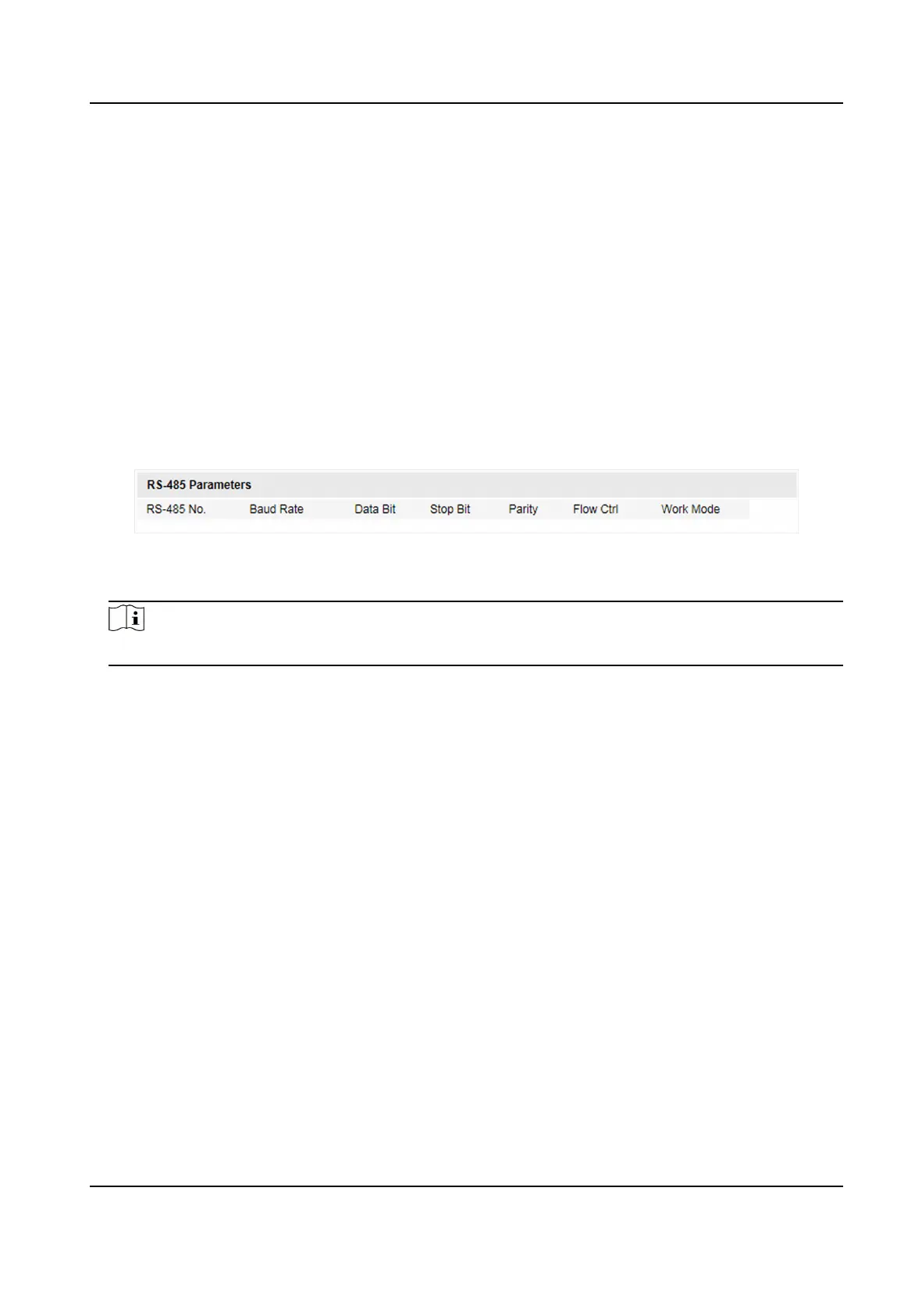

Figure 8-1 Set RS-485
2.
Set Baud Rate, Data Bit, Stop Bit, etc.
Note
The parameters should be same with those of the connected device.
3.
Select Work Mode.
Applicaon Mode Trigger
Select it if the vehicle detector has been connected via the RS-485 serial port.
Transparent Transmission
Select it, and the network command can be transmied to RS-485 control command via the
RS-485 serial port.
4.
Click Save.
8.2 Set RS-232
Set RS-232 parameters if you need to debug the device via RS-232 serial port.
Before You Start
The corresponding device has been connected via the RS-232 serial port.
Steps
1.
Go to Conguraon → Device Conguraon → System Conguraon → Serial Port
Parameters .
2.
Click Advanced
Sengs.
