2. Click Paern to congure a paern.

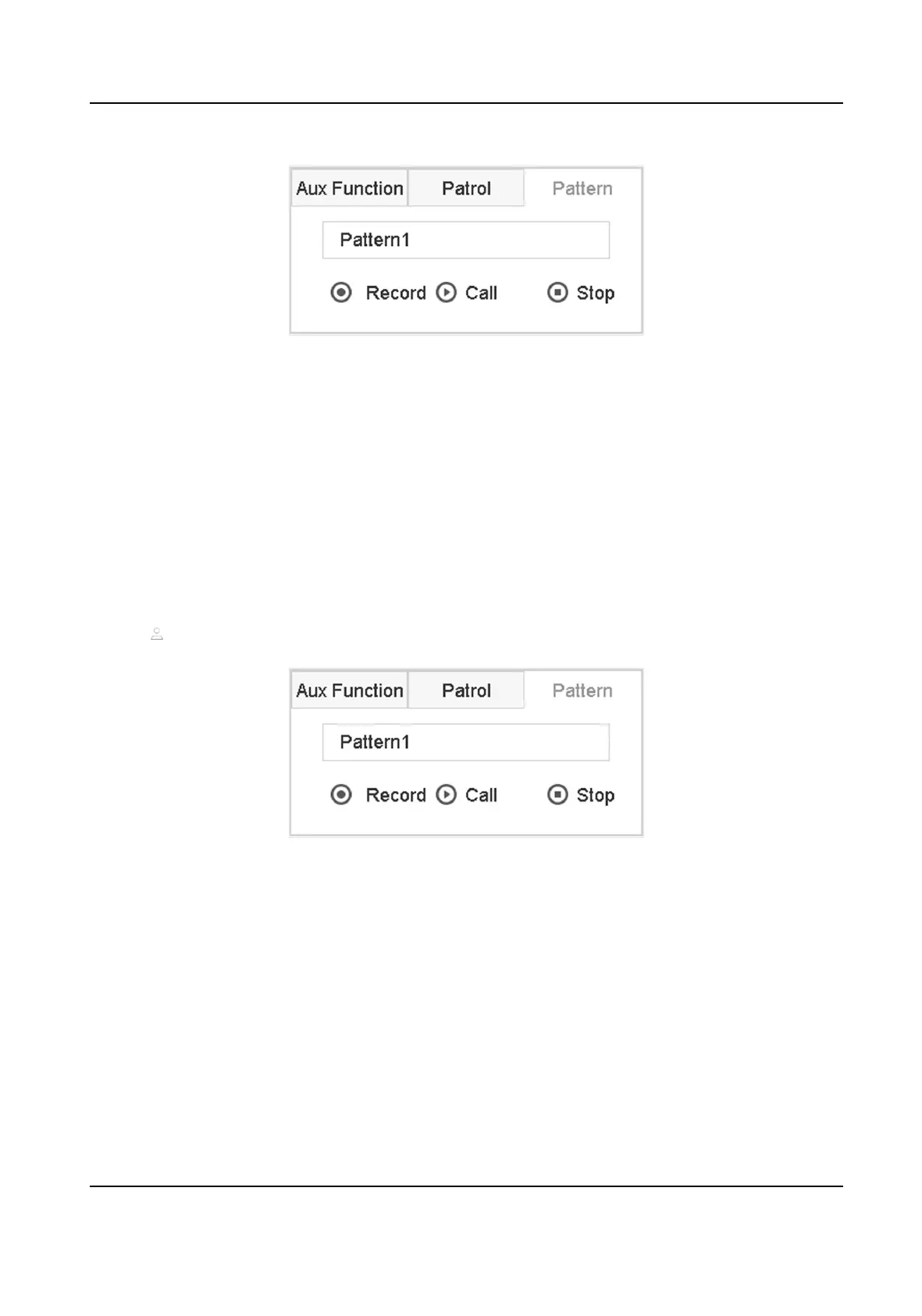

Figure 3-19
Paern Conguraon
3. Select the paern No.
4. Set the paern.
1) Click Record to start recording.
2) Click corresponding buons on the control panel to move the PTZ camera.
3) Click Stop to stop recording. The PTZ movement is recorded as the
paern.
3.12.7 Call a
Paern
Follow the procedure to move the PTZ camera according to the predened paerns.
Steps
1. Click
on the quick sengs toolbar of the PTZ camera's live view.
2. Click Paern to congure paern.
Figure 3-20
Paern Conguraon
3. Select a paern.
4. Click Call to start the paern.
5. Oponal: Click Stop to stop the paern.
3.12.8 Set Linear Scan Limit
Linear Scan trigger a scan in the horizontal direcon in the predened range.
Before You Start
Make sure the connected IP camera supports the PTZ funcon and is properly connected.
