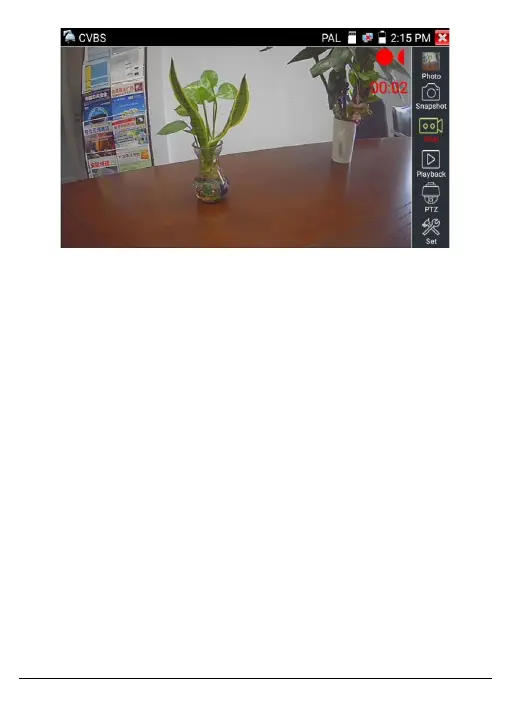

Figure 63, Video Screen

• Photo

Click Photo to enter and select the thumbnail photo to display it on

the screen.

Double-tap the desired image to view in full screen.

Double-click the photo again to return to previous menu.
