4.11 Foot Pedal Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
4.11 Foot Pedal Assembly
Tools required: T25 Torx®
1
screwdriver
Wire cutters
Removal
1. Set the brakes.
2. Raise the bed to the high position.
SHOCK HAZARD:
Unplug the bed from its power source. Failure to do so could result in
personal injury or equipment damage.
3. Unplug the bed from its power source.
4. Remove the five screws (A) securing the foot pedal assembly (B) to the
bed (C)
(see figure 4-14 on page 4-32).

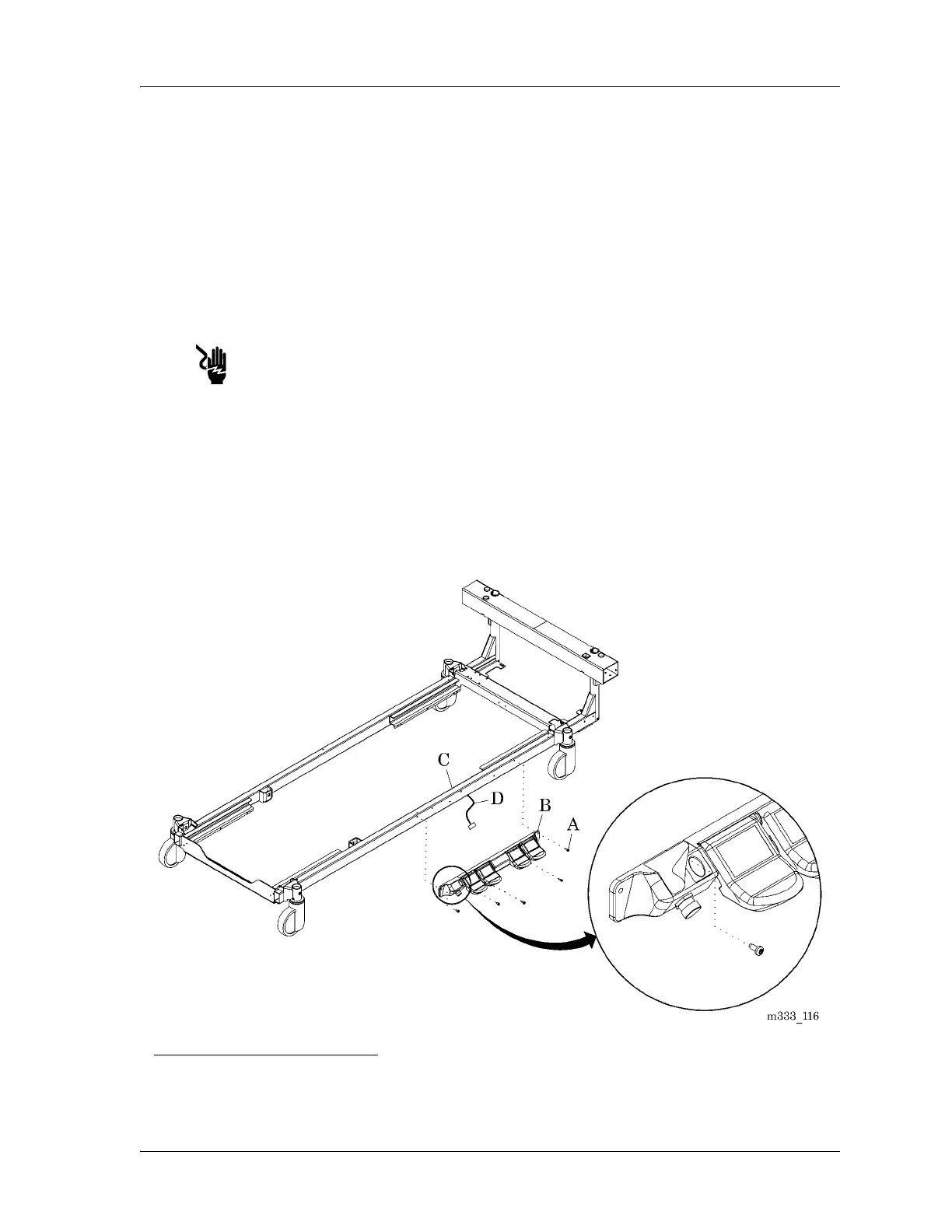

Figure 4-14. Foot Pedal Assembly
1. Torx® is a registered trademark of Textron, Inc.
Page 4 - 32 VersaCare™ Bed Service Manual (MAN333 REV 2)
