4.1 Description of the Screens
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A

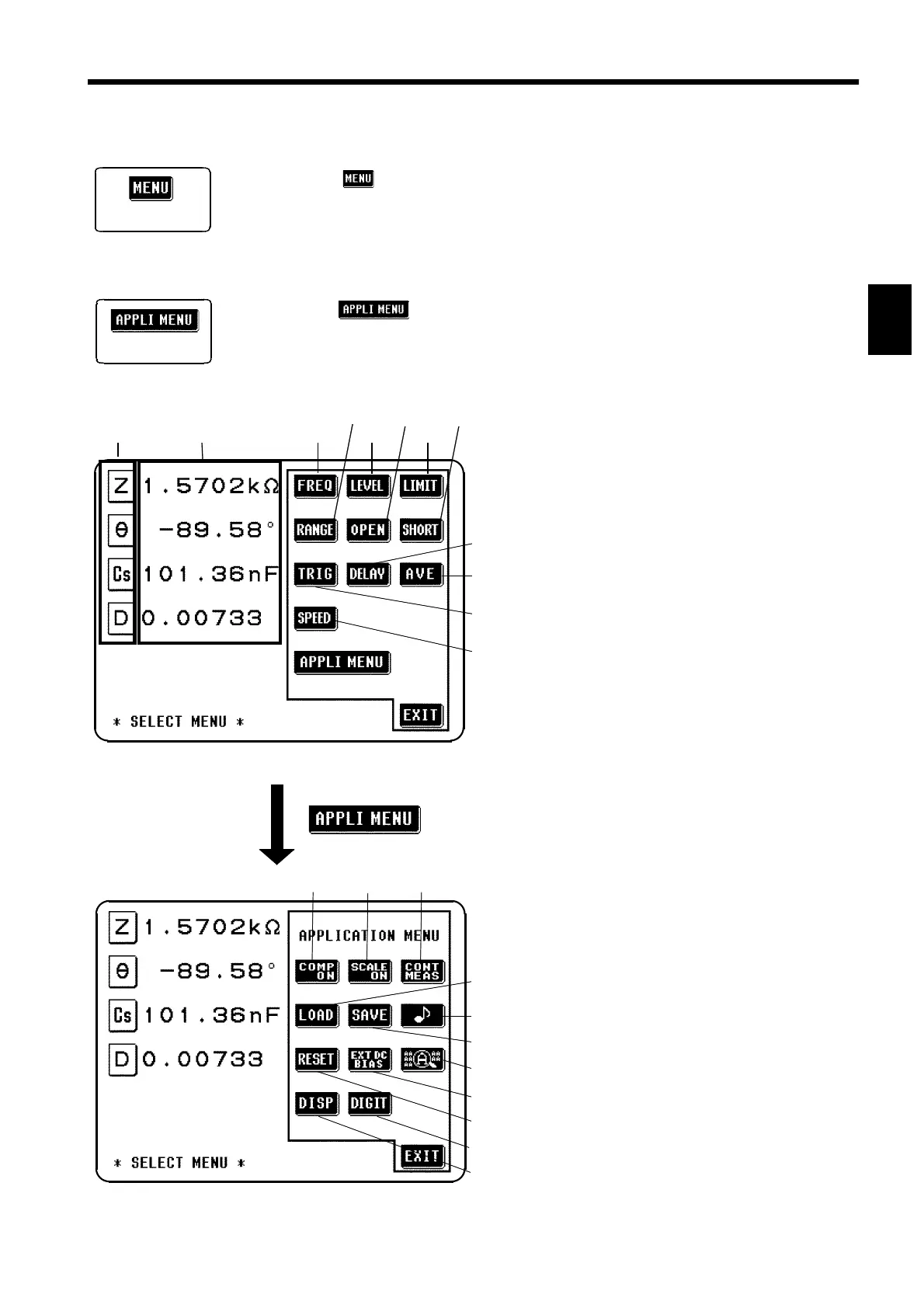

4.1.2 The Menu Screen and Application Menu Screen
Initial screen
Menu screen
1. Measured values
2. Parameters displayed
3.
FREQ
Test frequency setting
4.
LEVEL Test signal level setting
5.
LIMIT Limit setting
6. RANGE Range setting
7.
OPEN
Open circuit compensation
setting
8. SHORT Short circuit compensation
setting
9. TRIG Trigger setting
10. DELAY Trigger delay function
11.
AVE
Averaging setting
12.
SPEED
Test speed setting
13.
COMP ON Comparator function
14. SCALE ON Scaling function
15.
CONT MEAS
Continuous test function
16. LOAD Panel load function
17.
SAVE Panel save function
18.
♪
Beep sound setting
19.
RESET System reset
20. EXT DC BIAS
External DC bias setting
21.
A Magnification display function
22. DISP Display setting
23.
DIGIT Display digits setting
21 345
678
10
11
9
12
13 14 15
16
18
17
21
20
19
23
22
To display the Menu screen
Press this key on the Initial screen.
It is possible to access various setting screens for changing the various test
conditions from this screen.
To display the Application screen
Press the key on the Menu screen.
It is possible to access the various application function setting screens from
this screen.
