4.4 Setting the Test Signal Level
────────────────────────────────────────────────────
4.4.3 Setting the Open Circuit Voltage (V) Level

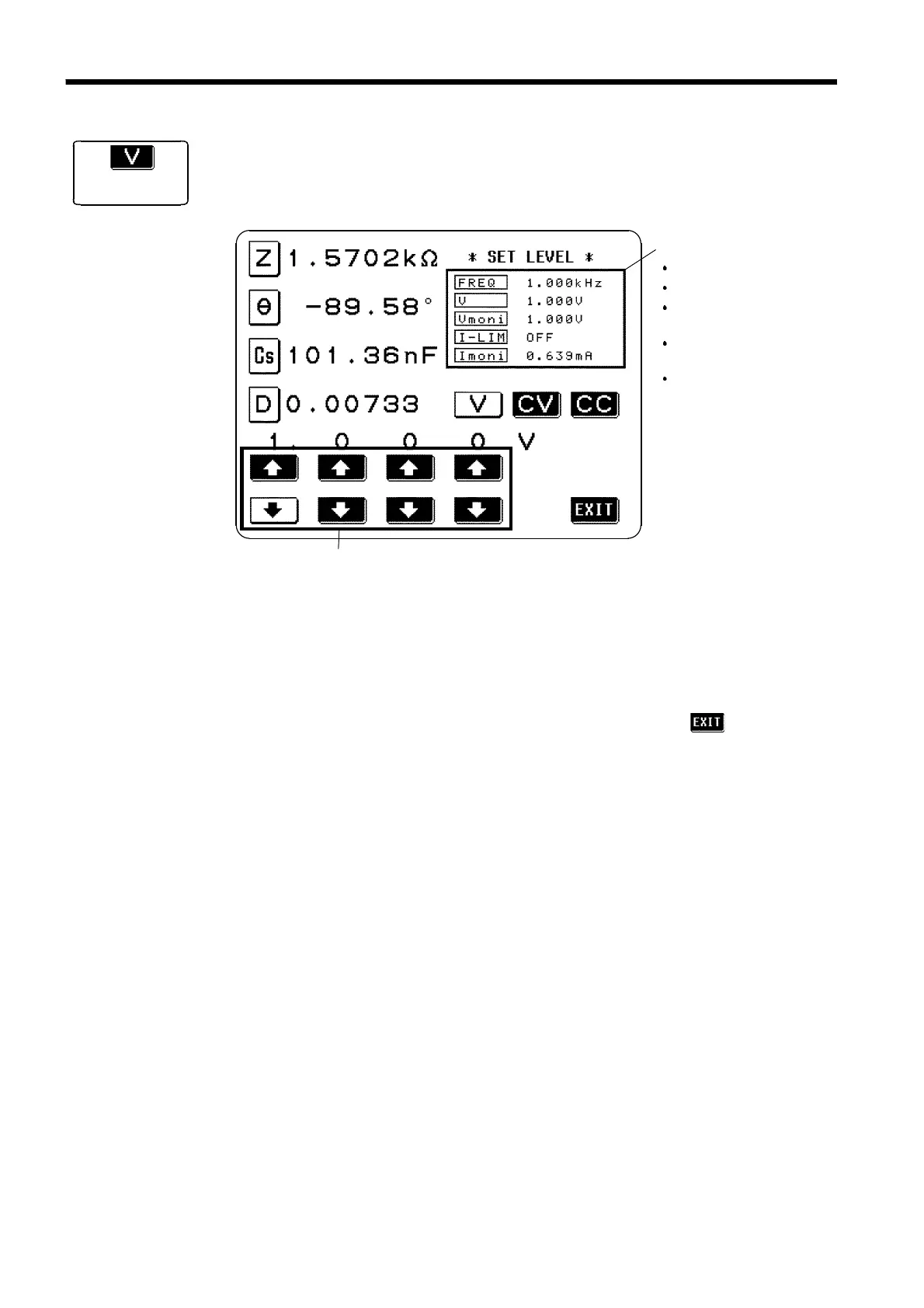

Test signal level
setting screen
The digit keys (If held down continuously, the corresponding digit increments
or decrements continuously.) (If the limit for the corresponding digit is reached,
these keys change to non-reversed video and become inactive.)
Monitor display portion
Test frequency
Open circuit voltage
Voltage between test
samples
Limit value for the
current
Current flowing throug
the test sample
1. Press this key to set open circuit voltage (V), and the monitor display will
change immediately.
2. Change the set voltage value using the digit keys.
3. When the setting has been established as above, press the key to return
to the Initial screen.
