Replacing the Fuse
9.5 Replacing the Fuse

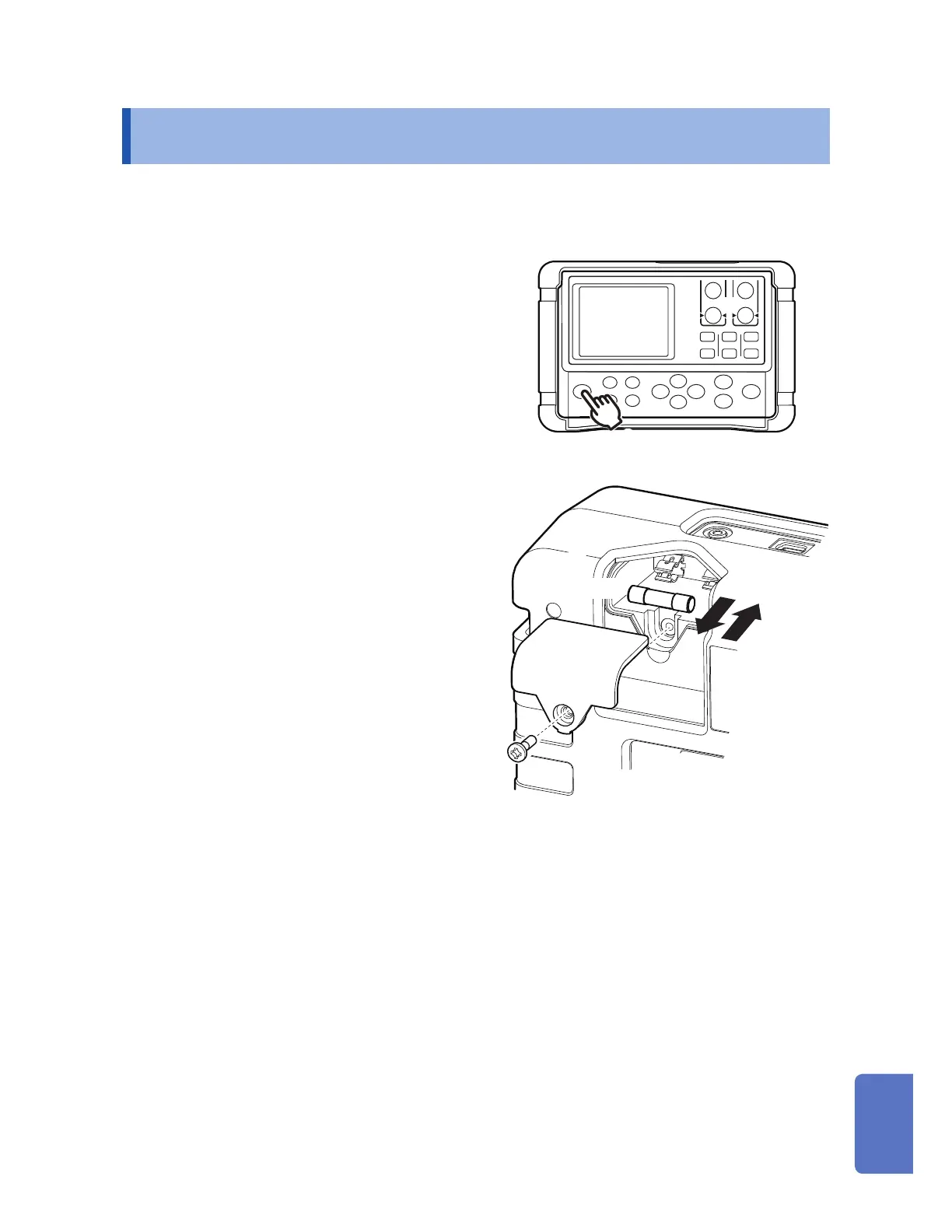

When the fuse on the instrument is burned out, replace the fuse as
described below.
1
Switch off the instrument
and remove the test leads.
1
2
Using a Phillips screwdriver,
remove the fuse cover at the
rear of the instrument.
3
2, 4
New fuse
3
Remove the burned-out
fuse and replace it with a
QHZRQHRIWKHVSHFL¿HG
VSHFL¿FDWLRQV
4
Replace the fuse cover and
tighten the screw.
The fuses can be purchased via authorized Hioki distributor or
reseller.
Fuse type: 216.630, Littelfuse Inc., fast-acting, rating 630 mA/250 V
AC, circuit breaker rating 1500 A
