Measuring a Battery (Inspection)
3.6 Measuring a Battery (Inspection)
1
Prepare the measurement. (p. 31)
2
Set the resistance and voltage ranges. (p. 39)
3
Perform zero adjustment. (p. 40)
4

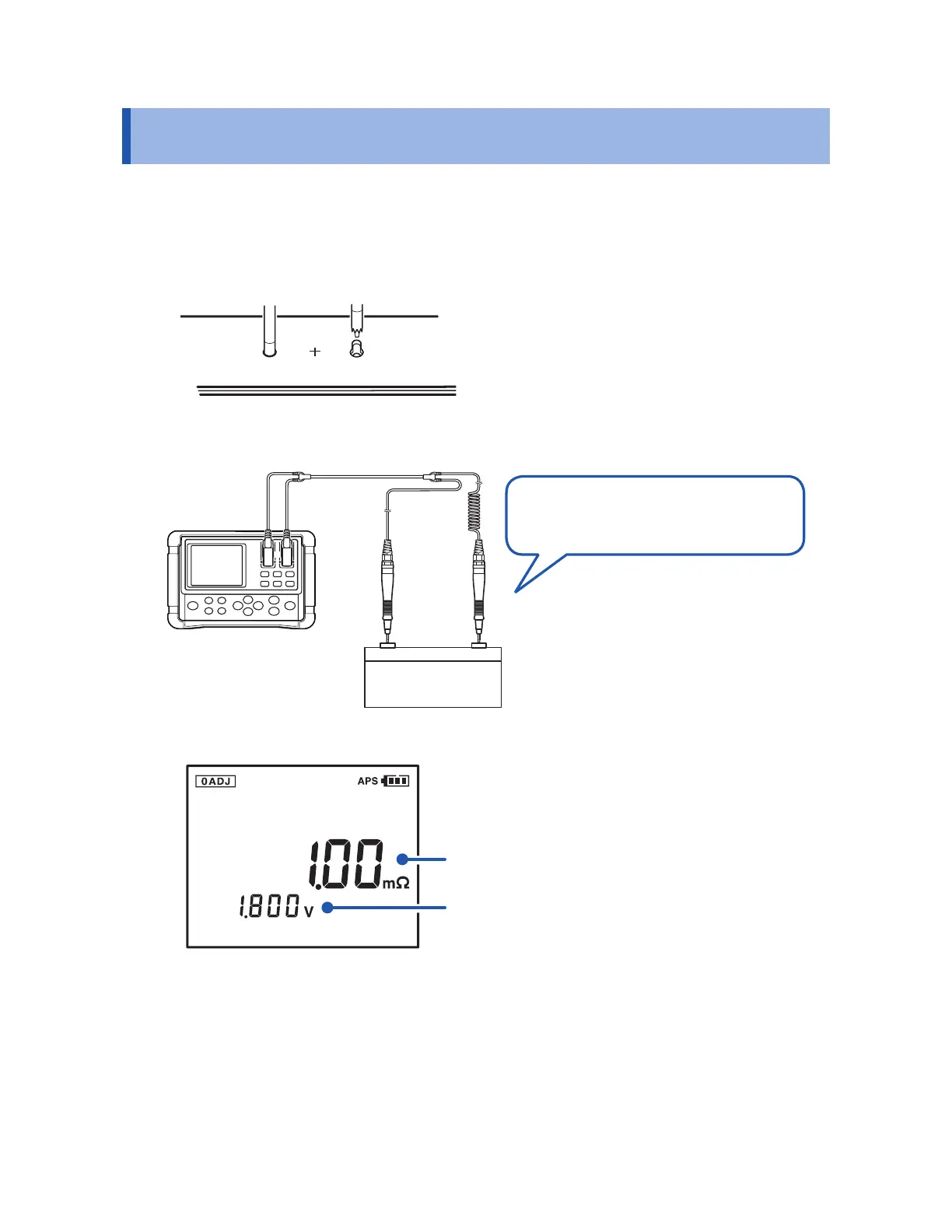

Connect the test leads to the battery.
(Black)
í
(Red)
+
Ensure that all pins are
connected to the battery.
5
Read the measurement values.
Internal resistance of the battery
Voltage
