Hioki BT3554 - 3.3 Adjusting Zero Value (Zero Adjustment); Shorting Methods for Test Leads

41
Adjusting Zero Value (Zero Adjustment)
Shorting Methods for Various Test Leads
For Pin Type Leads
8VHWKHLQFOXGHGRURSWLRQDO]HURDGMXVWPHQWERDUG7KH]HUR
adjustment can be achieved using the AC 4-terminal method.
1

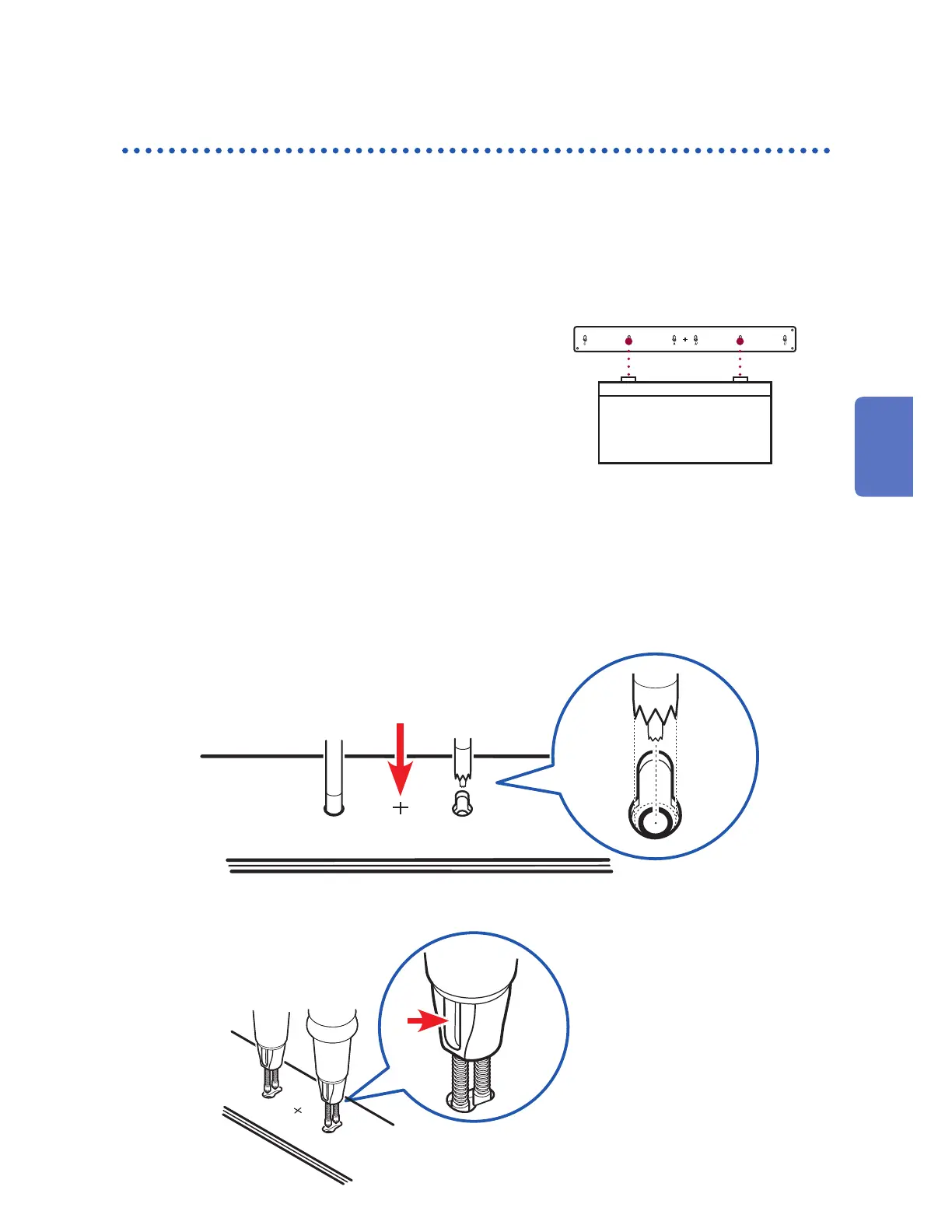

Select 2 holes on the zero
adjustment board which are
at the same distance as the
terminals on the battery to be
measured.
2
Push the test leads in a direction perpendicular to the
holes so that it is symmetrical to the central plus sign (+)
on the zero adjustment board.
Model 9465-10 or L2020 Pin Type Lead
Center the plus sign (+).+
).
Model 9772 Pin Type Lead
Insert the marked (engraved)
side into the hole.
1
2
3
4
5
6
7
Appx. Index
