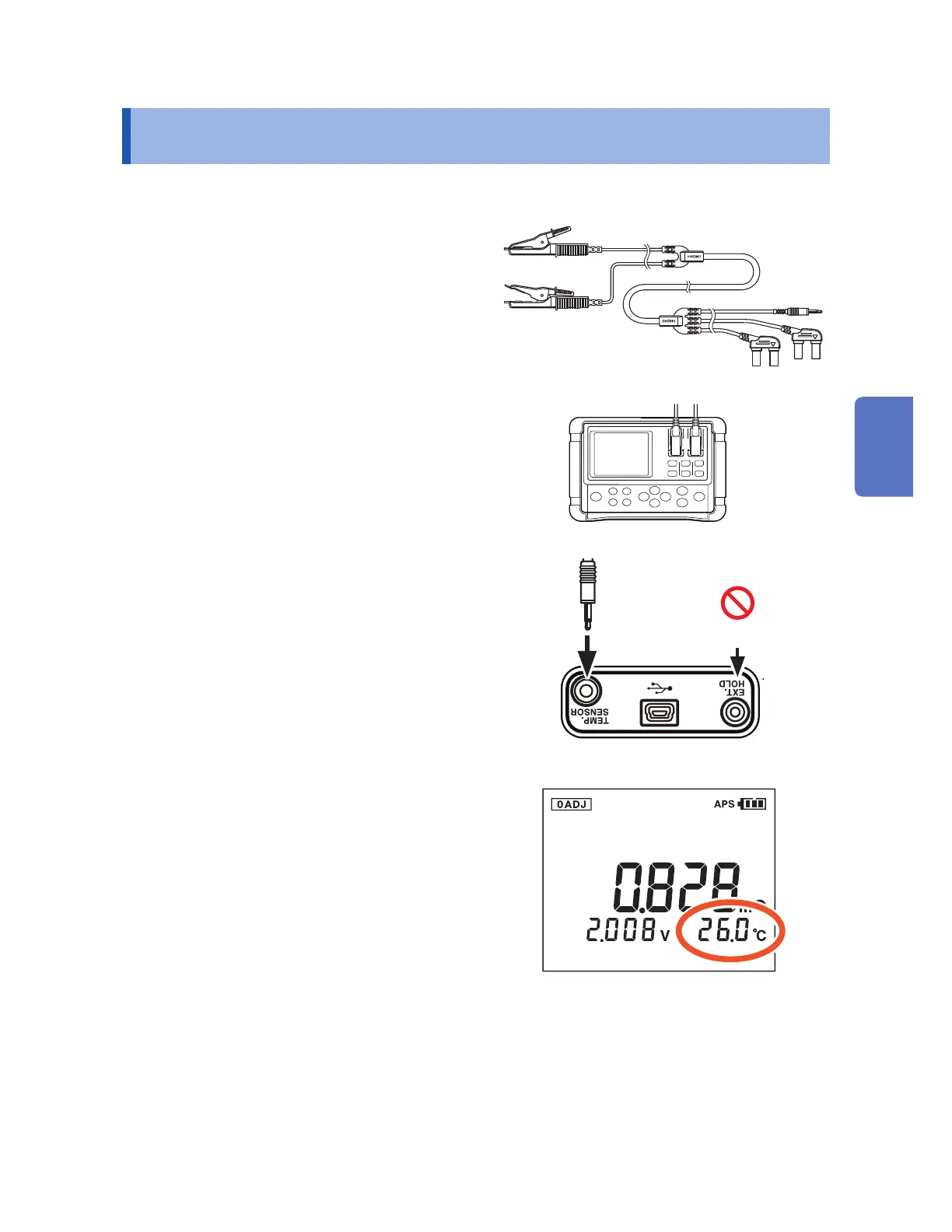

3.7 Measuring the Temperature
Use the optional model 9460
Clip Type Lead with Temperature
Sensor to measure the battery
temperature.
1
Connect the connector of
the model 9460 Clip Type
Lead with Temperature
Sensor to the instrument.
(Black) (Red)
2
Connect the miniplug of the
model 9460 Clip Type Lead
with Temperature Sensor to
the TEMP.SENSOR terminal.
Top of the instrument
NO
The instrument detects the
temperature sensor and
automatically displays the
temperature.
