Power Measurement (Power/Power Factor)

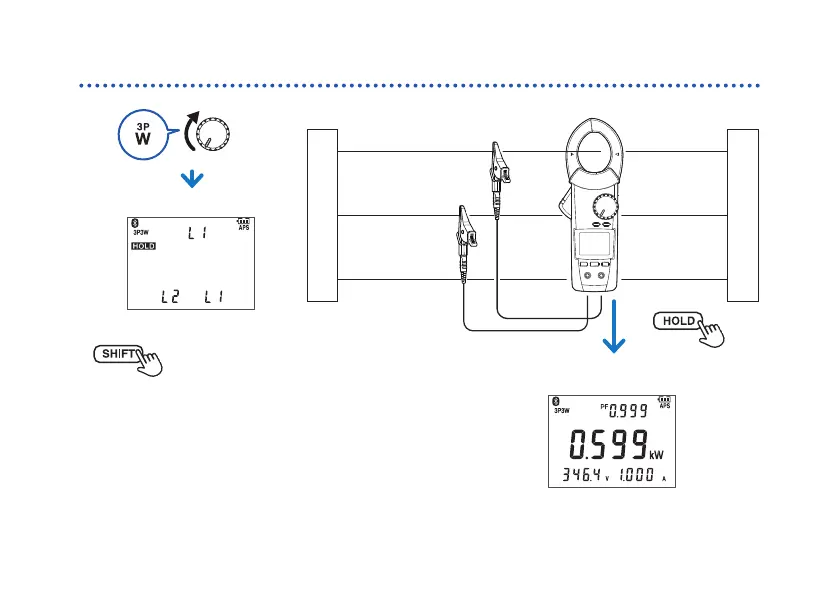

AC 3‑phase measurement (3P3W, balanced)
[3PW]
1
Connection display (p. 22)
*
"Switching the information shown on
the measurement display" (p. 24)
If the screen turns red: "Warning
display" (p. 66)
L1/R/A
L2/S/B
L3/T/C
Clamp and clip
2
Power supply side
Load side
Black
Red
Measurement display
(calculation result)*
3
When the balanced 3-phase 3-wire zero-cross phase angle is less than −90° or exceeds 90°, the measured
value appears
“
– – – –
”
.
