35
Power Measurement (Power/Power Factor)

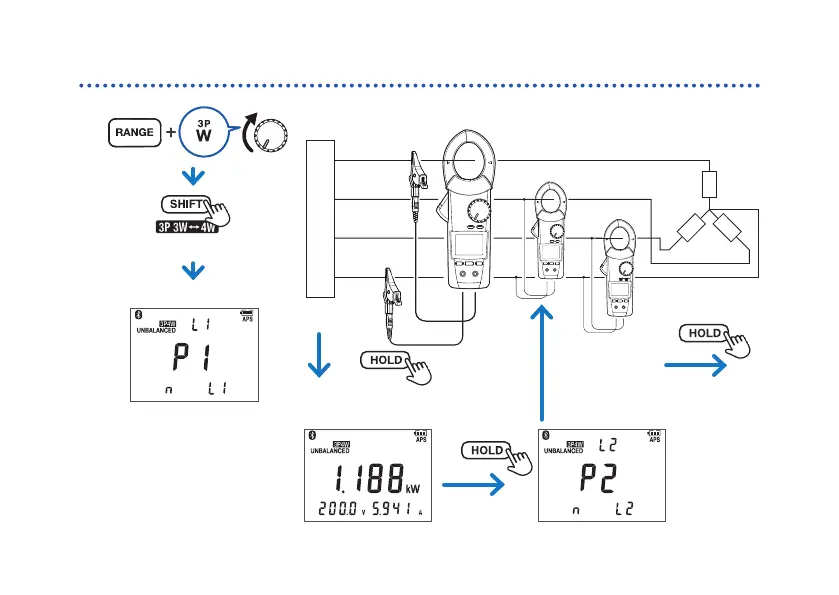

AC 3‑phase measurement (3P4W, unbalanced)
[3PW]
1
L1/R/A
L2/S/B
N
L3/T/C
Clamp and clip
Clamp
and clip
2
5
Measurement display 1
(active power 1)
To next page
Red
Red
Black
Black
Power supply side
Load side
3
4
6
Connection display 2
More than 1 sec.
Connection display 1 (p. 22)
Proceed to the next step after
verifying that the measured values
shown on measurement display 1
is normal.
To Next Page
