Hioki CM3286 - AC 3-Phase Measurement (3 P4 W, Balanced) [3 PW]

34
Power Measurement (Power/Power Factor)

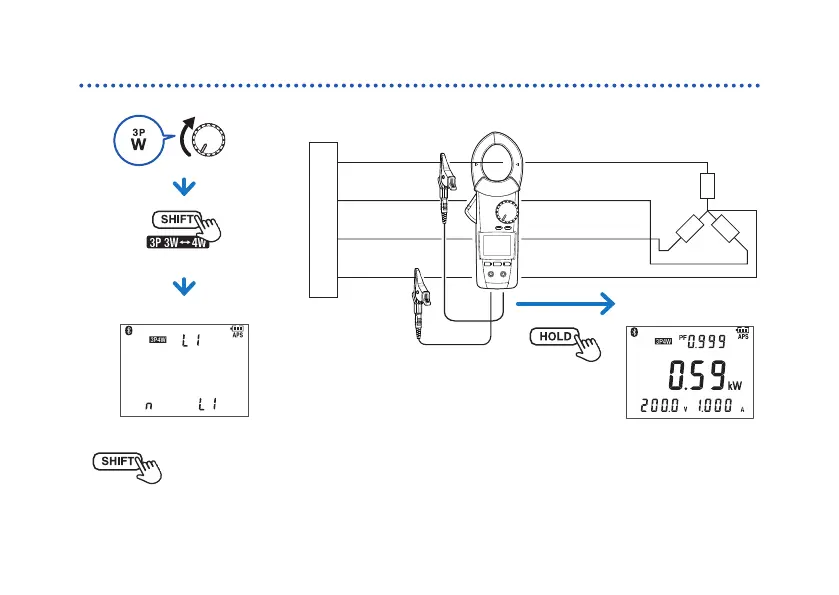

AC 3‑phase measurement (3P4W, balanced)
[3PW]
1
L1/R/A
L2/S/B
N
L3/T/C
Measurement display
(calculation result)*
3
If the screen turns red:
"Warning display" (p. 66)
2
Clamp
and clip
Red
Black
Power supply side
Load side
More than 1 sec.
Connection display (p. 22)
* "Switching the information shown on the measurement display" (p. 24)
