32

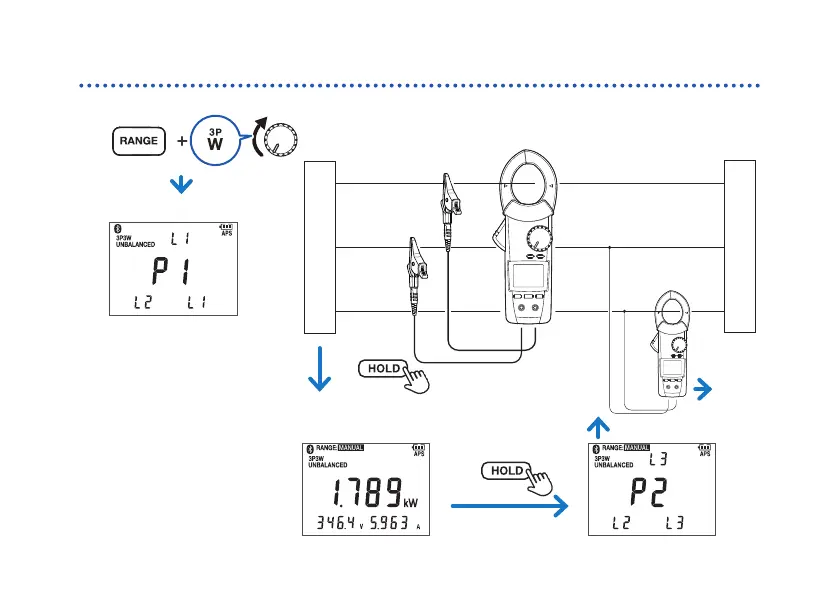

Power Measurement (Power/Power Factor)
AC 3‑phase measurement (3P3W, unbalanced)
[3PW]
1
Connection display 1 (p. 22)
• Proceed to the next step after
verifying that the measured
values shown on measurement
displays 1 and 2 are normal.
• If the screen turns red:
"Warning display" (p. 66)
L1/R/A
L2/S/B
L3/T/C
Clamp and clip
Clamp
and clip
2
5
Measurement display
(active power 1)
To next
page
Red
Red
Black
Black
Power supply side
Load side
3
4
Connection display 2
To Next Page
