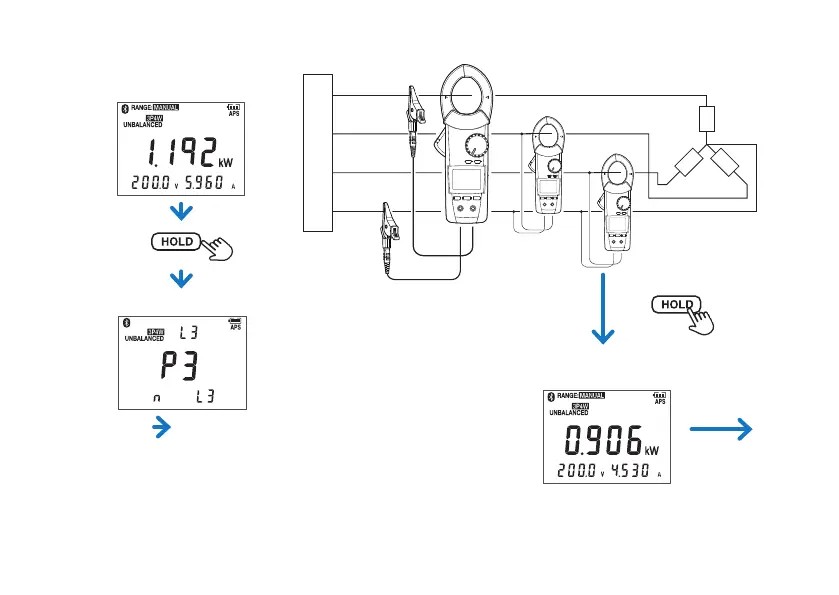

Power Measurement (Power/Power Factor)
Measurement display 2
(active power 2)
L1/R/A
L2/S/B
N
L3/T/C
Clamp
and clip
8
Measurement display 3
(active power 3)
Red
Black
Power supply side
Load side
9
To next page
7
Connection display 3
To
8
Proceed to the next step after
verifying that the measured
values shown on measurement
displays 2 and 3 are normal.
