Single-phase Active Energy Measurement (Integrated Measurement) [Setting Wh]
4

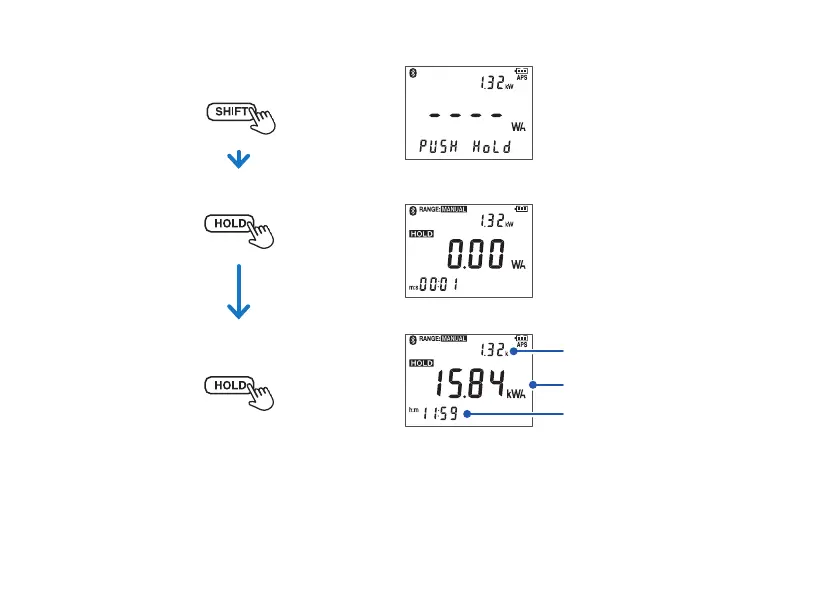

Set the instrument to power integration mode.
5
Start integration.
• Range is xed when integration
starts. Change the range
before starting to integrate a
large power quantity or for an
extended period of time.
• Only the positive (consumption)
active power is added. Negative
(generation) active power is not
added.
6
Stop integration.
Single-phase active power
Single-phase active energy
Elapsed time
• When the HOLD key is pressed during integration stop, the integrated energy clears and returns to the
display shown in Step 4.
• The measured values are automatically stored just before the instrument turns off due to low battery voltage.
Next time the instrument is turned on, the saved values will be displayed. (The measured values can be
cleared by pressing the HOLD key.)
