Installation GREYHOUND Switch
Release
01
04/2016
21
1.3.2 GRS1142

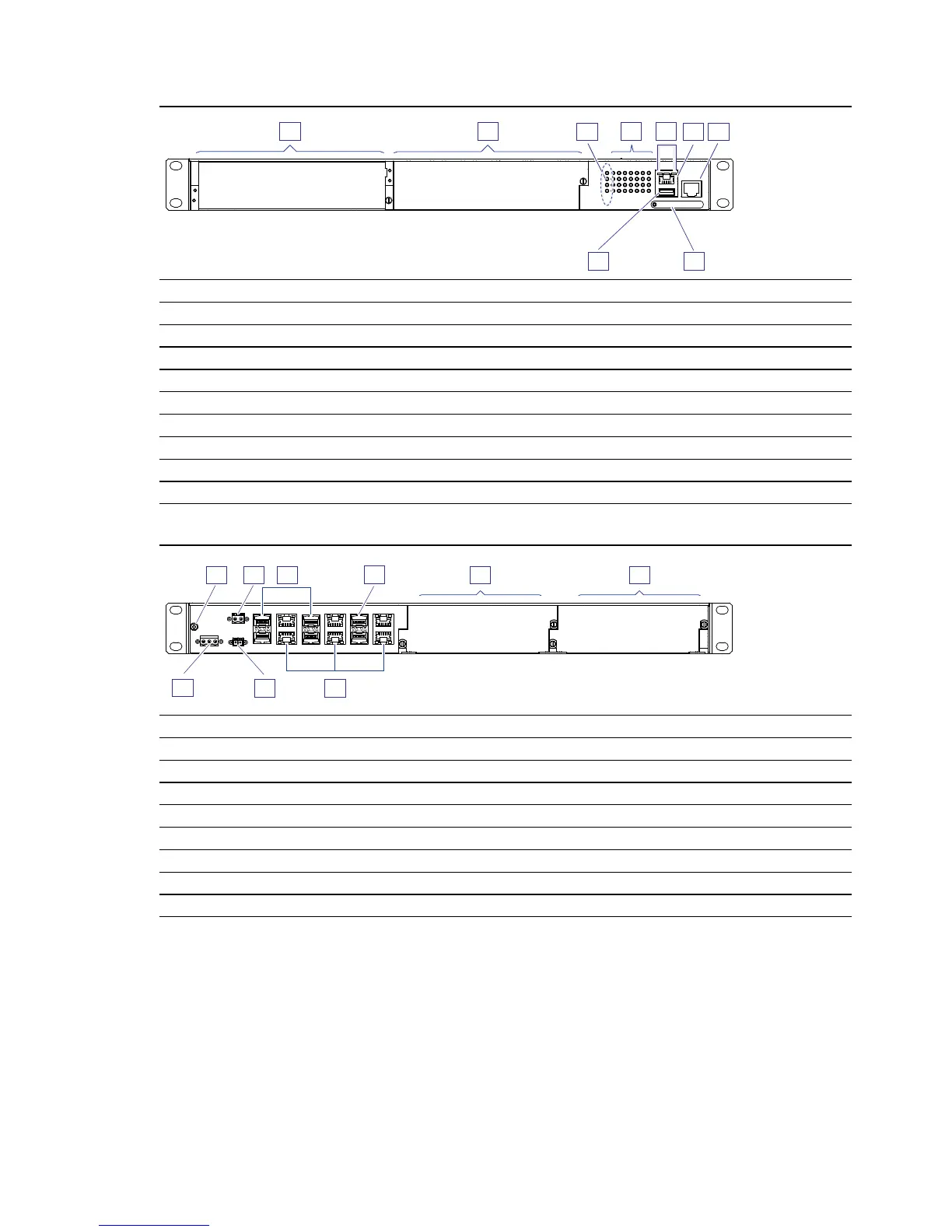

Front view - 6TX/6FX and 10TX/2FX
1 Cover panel for power supply unit slot 1
2 Cover panel for power supply unit slot 2
3 LED display elements for device status
4 LED display elements for port status
5 Display elements for power supply unit status
6 V.24 interface
7 Out-of-band management port
8 Slot for the SD card
9 USB interface
Rear view - 6TX/6FX
1 Grounding screw
2 2-pin terminal block for the supply voltage, characteristic value L
3 SFP slot for 1/2.5 Gbit/s F/O connections
4 SFP slot for 100/1000 Mbit/s F/O connections
5 ... 6 Cover panels for media module slot
7 RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
8 Connection for the signal contact
9 3-pin terminal block for the supply voltage, characteristic value H
