Installation GREYHOUND Switch
Release
01
04/2016
41
2.4 Mounting a media module (optional)
Hirschmann supplies the media modules in a ready-to-operate state. By
using a media module, you obtain up to 8 additional Fast and/or Gigabit
Ethernet ports. The media modules are hot-swap-capable. You have the
option of mounting the media modules while the device is operating.

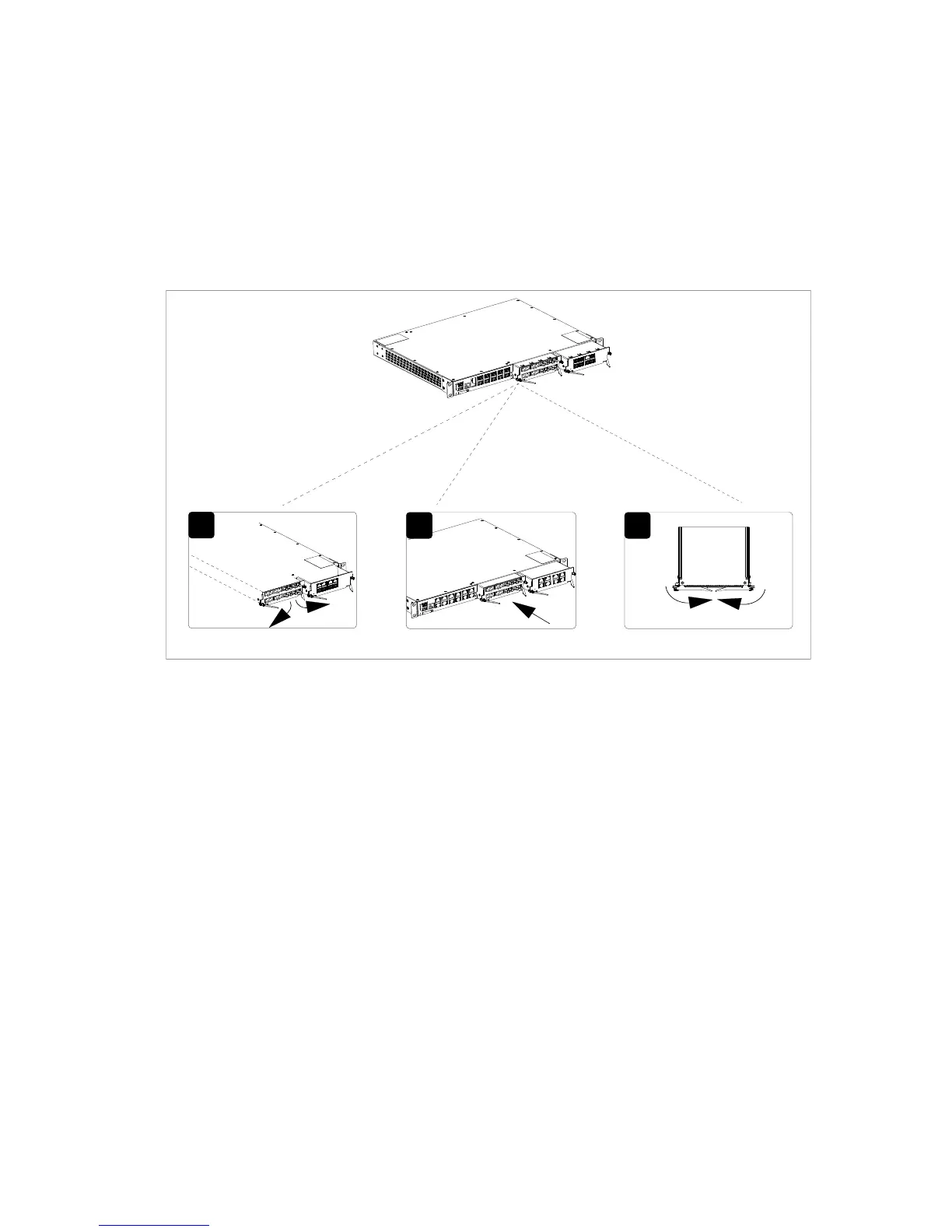

Proceed as follows:
Remove the cover panel from the media module slot on the basic device.
Open the lock of the media module by pressing the locking lever outwards
(step 1).
Insert the media module straight into the media module slot (step 2).
Close the lock of the media module by pressing the locking lever inwards
(step 3).
Fasten the media module with the screws in the front panel of the basic
device.
The tightening torque is 4.4 lb-in (0.5 Nm).
1
2
3
