Hirschmann GREYHOUND GMM42 - 6 Disassembly; Removing a Power Supply Unit

Installation GREYHOUND Switch
Release 01 04/2016
55
6Disassembly

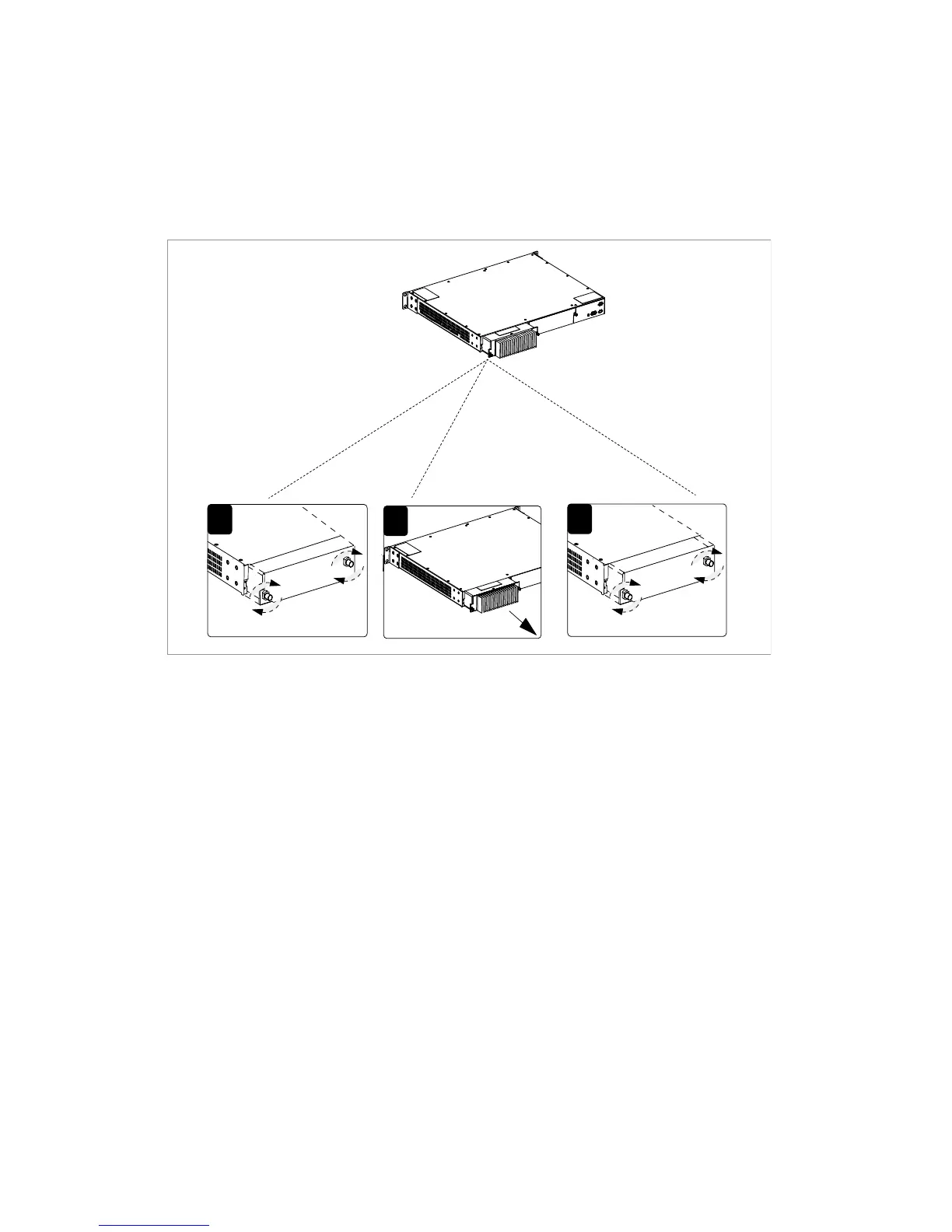

6.1 Removing a power supply unit
Proceed as follows:
 Remove the screws on the front panel of the power supply unit.
 Pull the power supply unit out of the slot.
 Close the power supply unit slot on the basic device using a cover panel.
 Fasten the cover panel using the 2 screws on the basic device.
The tightening torque is 4.4 lb-in (0.5 Nm).
2
1
3
