2.3 Mounting the cover panel and the power
supply unit (optional)
2.3.1 Mounting the cover panel
Prerequisite:
To comply with the EMC requirements, close each of the free, open slots with
a cover panel, which you obtain as accessories.
See “Order number” on page 70.
Proceed as follows:
Place the cover panel over the power supply unit or media module slot of
the device.
Fasten the cover panel to the device by tightening the 2 screws.

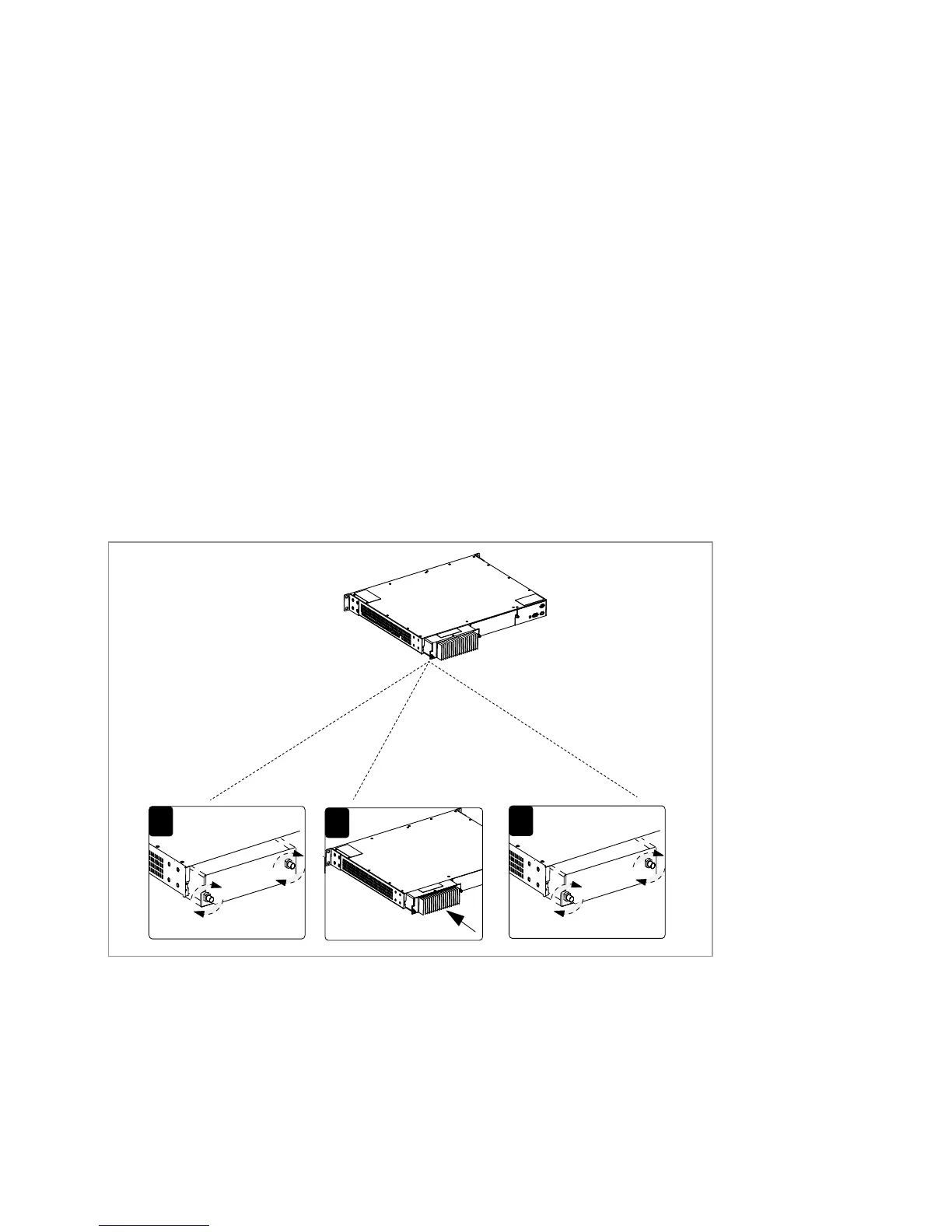

2.3.2 Mounting the power supply unit
Hirschmann supplies the power supply units in a ready-to-operate state. The
power supply units are hot-swap-capable. You have the option of mounting
the power supply units while the device is operating.
Proceed as follows:
Remove the cover panel (if mounted) from the power supply unit slot on
the device.
Insert the power supply unit straight into the slot.
Fasten the power supply unit to the device by tightening the 2 screws.
The tightening torque is 4.4 lb-in (0.5 Nm).
