Hirschmann GREYHOUND GMM42 - Media Modules

Installation GREYHOUND Switch
Release 01 04/2016
23

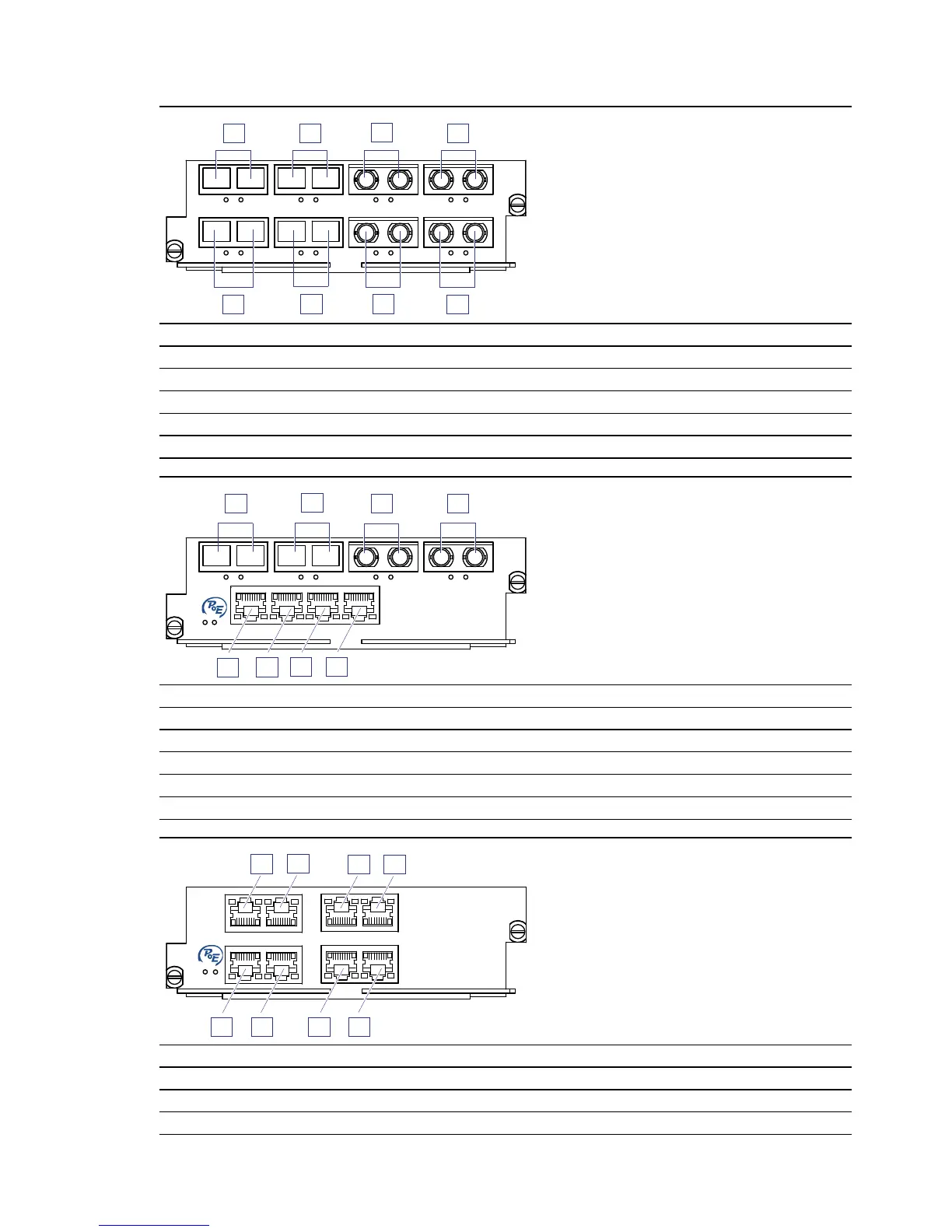

1.3.4 Media modules
GMM20-VVUUMMNN
Port Port description
1, 3 2 × DSC singlemode socket
5, 7 2 × ST singlemode socket
2, 4 2 × DSC multimode socket
6, 8 2 × ST multimode socket
GMM30-MMNNTTTT / GMM32-MMNNTTTT
Port Port description
1, 3 2 × DSC multimode socket
5, 7 2 × ST multimode socket
2, 4 2 × RJ45 socket
6, 8 2 × RJ45 socket
GMM40-TTTTTTTT / GMM42-TTTTTTTT
Port Port description
1, 3 2 × RJ45 socket
5, 7 2 × RJ45 socket
