Installation GREYHOUND Switch
Release
01
04/2016
49
2.6.2 Signal contact

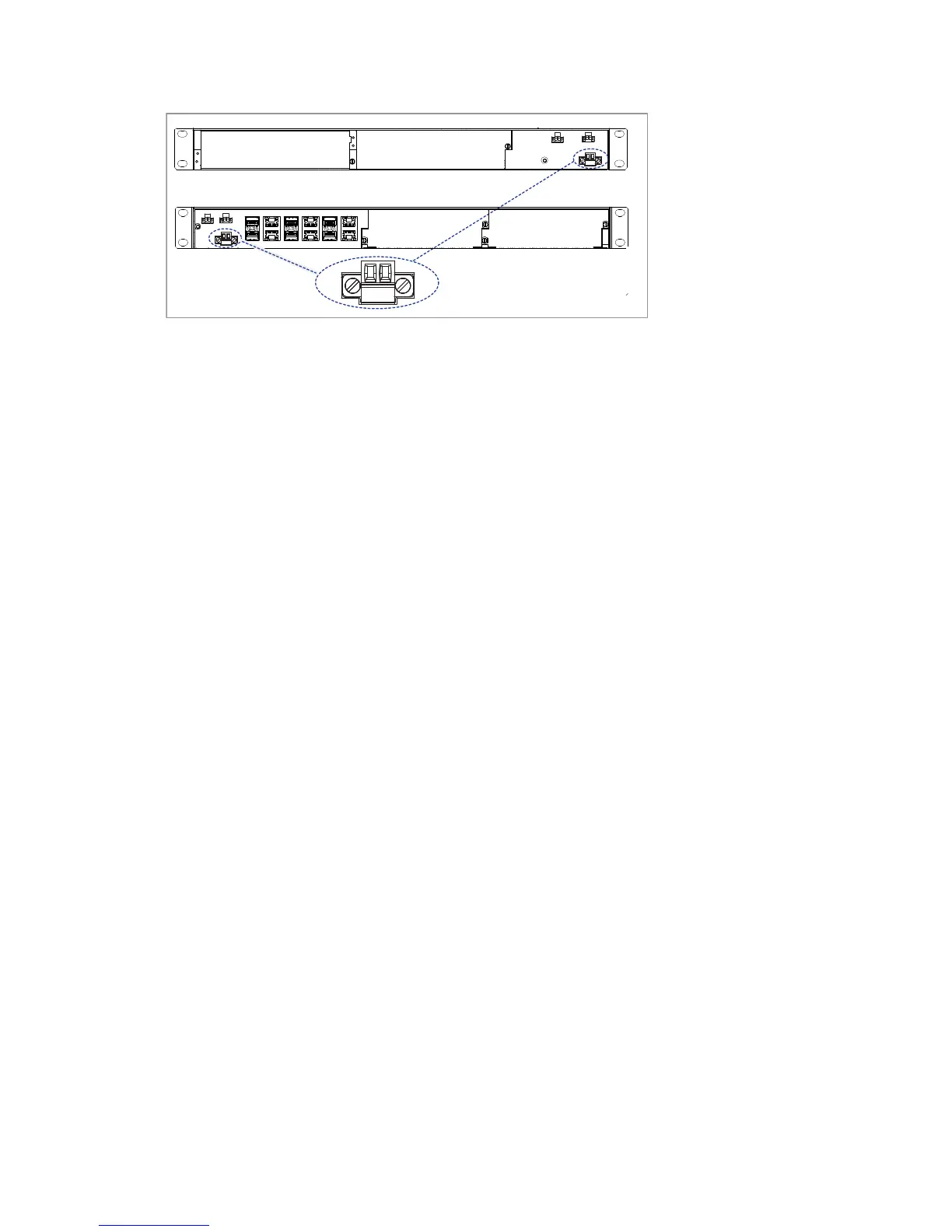

Figure 2: Signal contact: 2-pin terminal block with screw locking
Connect the signal contact wires with the connectors of the terminal block.
Fasten the wires connected by tightening the terminal screws.
GRS1042
GRS1142
