Hirschmann GREYHOUND GMM42 User Manual

48
Installation GREYHOUND Switch
Release 01 04/2016
 Supply voltage with characteristic value HL
Type of the voltages
that can be
connected
Specification of the supply
voltage
Connections
DC voltage Rated voltage range DC
 24 V ... 48 V
 48 V... 54 V
+ Plus terminal of the supply voltage
− Minus terminal of the supply
voltage
Table 4: Supply voltage with characteristic value LL: type and specification of the
supply voltage, connections
Type of the voltages
that can be connected
Specification of the supply
voltage
Connections
DC voltage Rated voltage range DC
60 V ... 250 V
+/L
−/N
Plus terminal of the supply
voltage
Minus terminal of the supply
voltage
Protective conductor
AC voltage Rated voltage range AC
110 V ... 240 V, 50 Hz ... 60 Hz
+/L
−/N
Outer conductor
Neutral conductor
Protective conductor
Table 5: Supply voltage with characteristic value HH: type and specification of the
supply voltage, connections

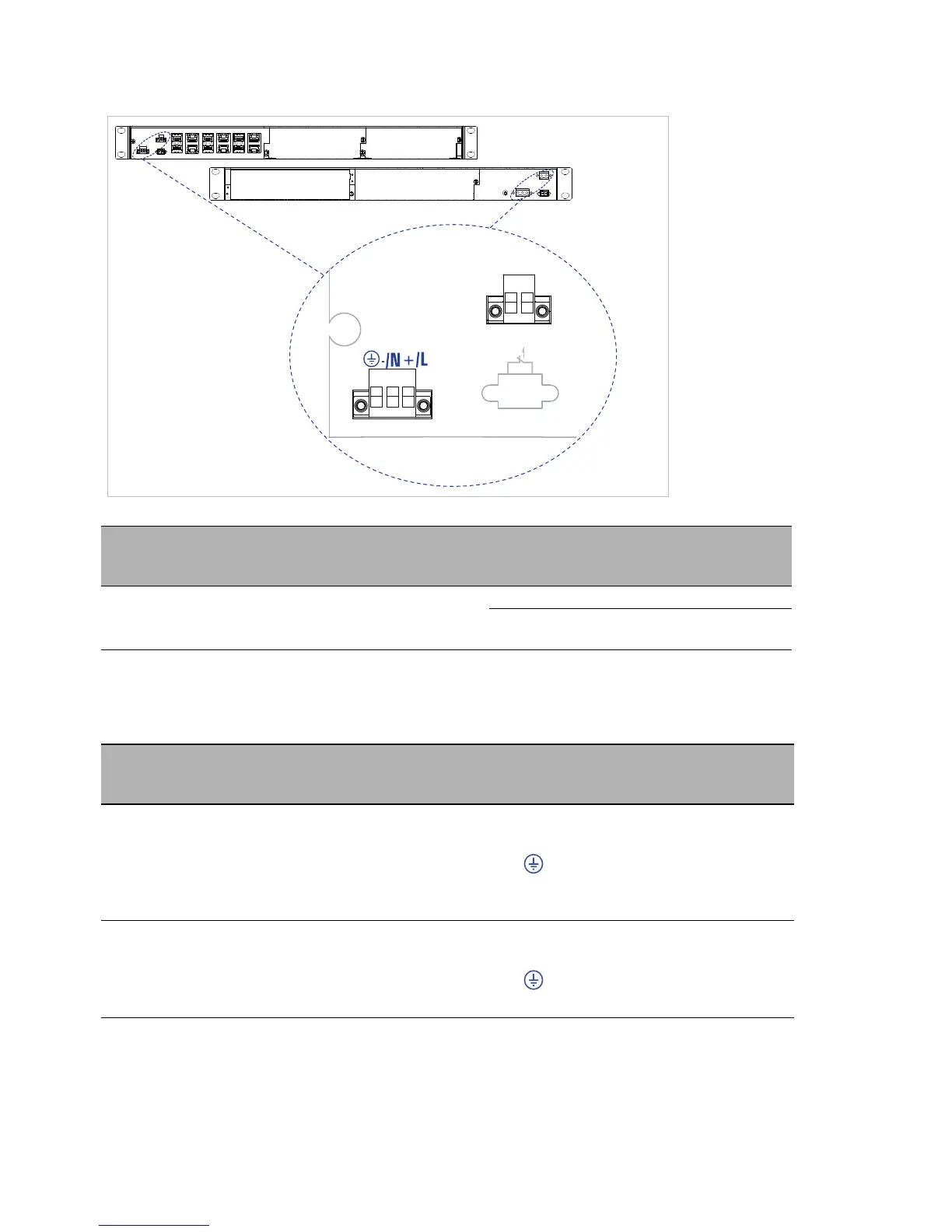

X
RELAY
P2
P1
z
P1 P2
GRS1142
GRS1042
-
+
