Installation RSP 20/25/30/35
Release
08
08/2014
17

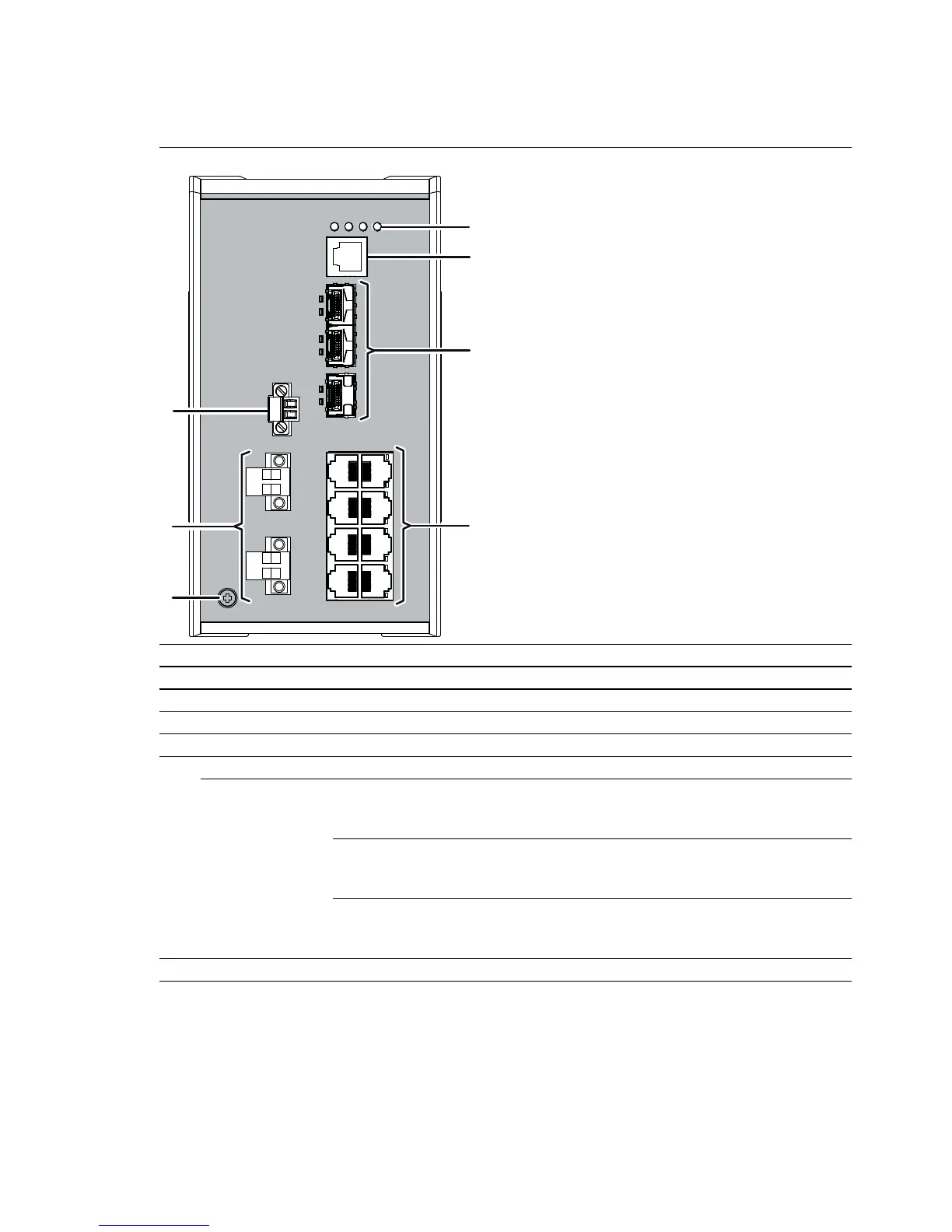

1.4 Device views
1.4.1 Front view
1 LED display elements for device status
2 V.24 interface
3 3 × SFP slot for 100 Mbit/s connections
4 8 × 10/100 Mbit/s twisted pair ports
5 Grounding screw
6 Working voltage connection
alternatively,
depending on
device variant
Operating voltage
characteristic value:
CC
2 voltage inputs for redundant power supply
2-pin terminal block
Operating voltage
characteristic value:
K9
1 voltage input
3-pin terminal block
Operating voltage
characteristic value:
KK
2 voltage inputs for redundant power supply
3-pin terminal block
7 Connection for the signal contact
Table 5: Front view (using the example RSP20-11003Z6TT-SCC...)
6
7
4
5
1
2
3
