1.8 Management interfaces
1.8.1 V.24 interface (external management)
A serial interface is provided on the RJ11 socket (V.24 interface) for the local
connection of an external management station (VT100 terminal or PC with
corresponding terminal emulation). This enables a connection to the
Command Line Interface (CLI) and the system monitor to be made.
The socket housing is electrically connected to the front panel of the device.
The V.24 interface is electrically insulated from the working voltage.

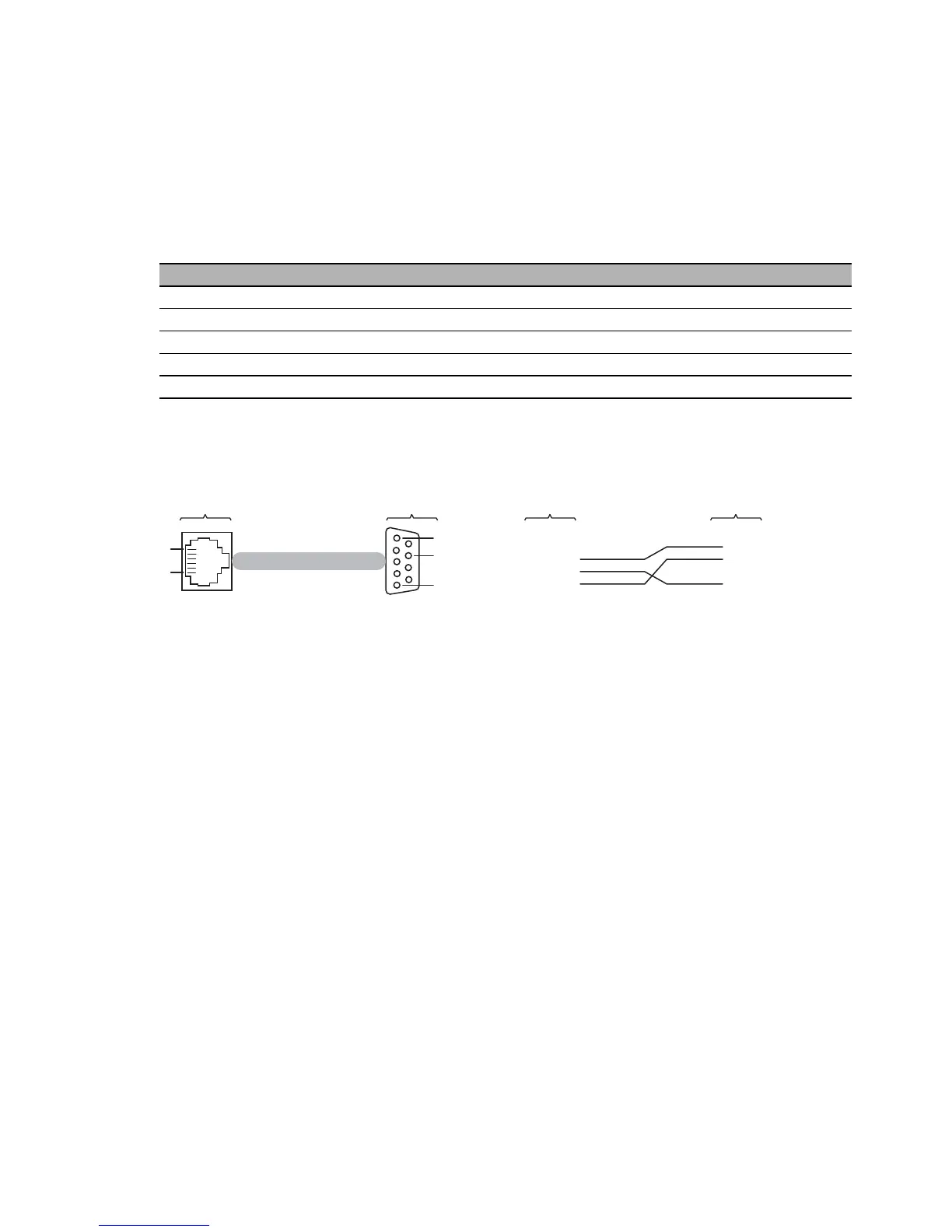

Figure 1: Pin assignment of the V.24 interface and the DB9 connector
Note: You find the order number for the terminal cable, which is available as
accessory, under “Accessories” on page 48.
1.8.2 SD card interface
The SD card interface allows you to connect the AutoConfiguration Adapter
ACA31 storage medium. This is used for saving/loading the configuration
data and diagnostic information, and for loading the software.
See “Accessories” on page 48.
For information about the position on the device see “Rear view” on page 18.
On the front of the device there is an LED display that informs you about the
status of the interface.
Only use Hirschmann SD cards.
VT 100 terminal settings
Speed 9,600 Baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none
1
1
8
5
6
2
3
5
1
2
3
4
5
6
CTS
n.c.
TX
GND
RX
RTS
RJ11
DB9
RJ11
DB9
