20
Installation RSP 20/25/30/35
Release
08
08/2014
1.6.2 100/1000 Mbit/s twisted pair port (optional)
This port is an SFP slot.
The 100/1000-Mbit/s twisted pair port offers you the possibility to connect
network components according to the IEEE 802.3 100BASE-FX/1000BASE-
SX/1000BASE-LX standard.
This port supports:
Autonegotiation
Full duplex mode
1.6.3 100 Mbit/s F/O port
This port is an SFP slot.
The 100 Mbit/s F/O port offers you the ability to connect network components
according to the IEEE 802.3 100BASE-FX standard.
This port supports:
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
Default setting: Full duplex
1.6.4 100/1000 Mbit/s F/O port (optional)
This port is an SFP slot.
The 100/1000 Mbit/s F/O port offers you the ability to connect network
components according to the IEEE 802.3 100BASE-FX/1000BASE-
SX/1000BASE-LX standard.
This port supports:
1000 Mbit/s full duplex
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
State on delivery:
100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver
1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver
Pin Function
1BI_DB+
2BI_DB−
3BI_DA+
4 BI_DD+
5BI_DD−
6BI_DA−
7 BI_DC+
8BI_DC−

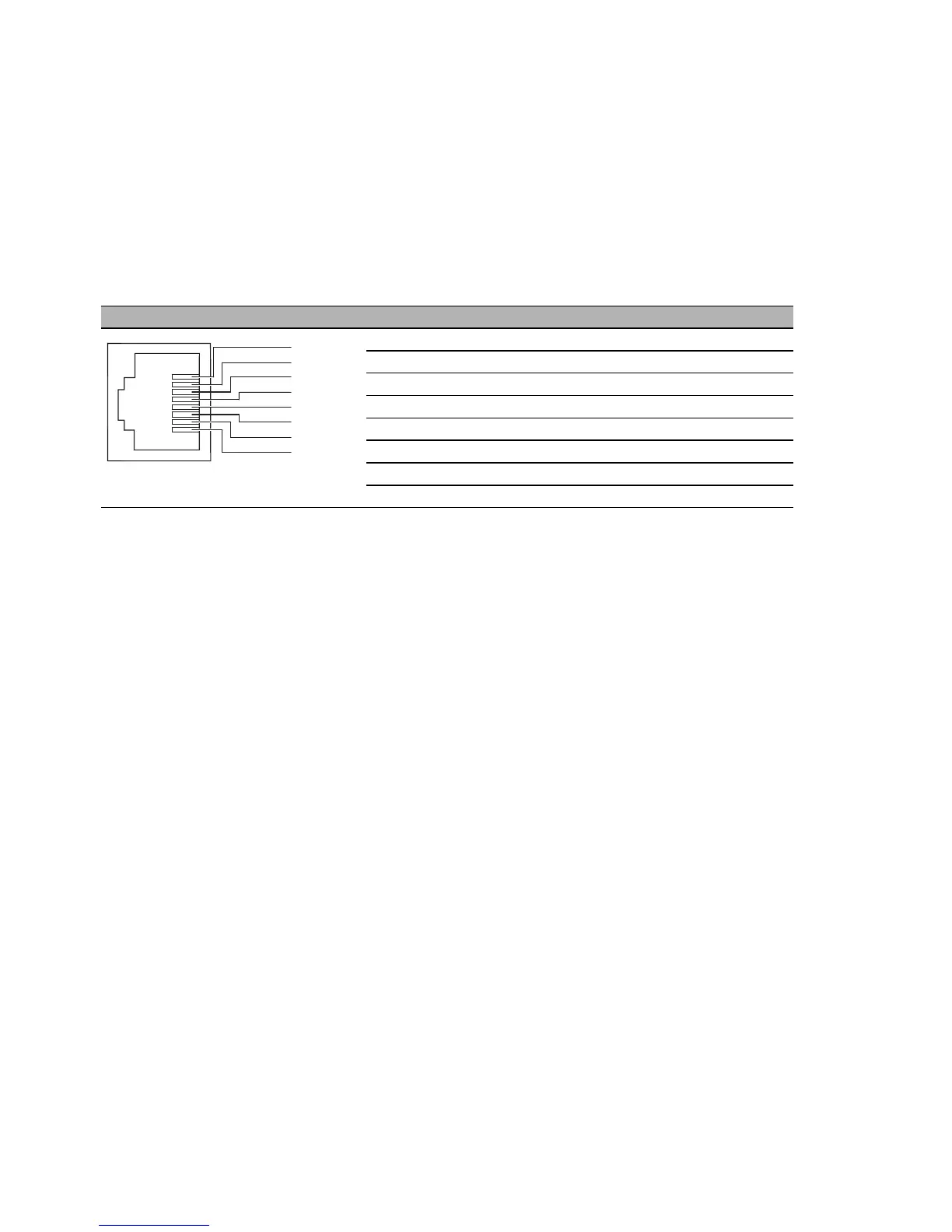

Table 7: Pin assignment of the 10/100/1000 Mbit/s twisted pair port, RJ45 socket,
1000 Mbit/s mode, MDI-X mode
