Installation RSP 20/25/30/35
Release 08 08/2014
2.5.2 Working voltage with the characteristic value KK
You will find information on the characteristic values here:
“Device name and product code” on page 13
You have the option of supplying the working voltage redundantly, without
load distribution.
Both working voltage inputs are uncoupled.
With a redundant supply, the working voltage 1 (upper voltage input on the
device) has priority.

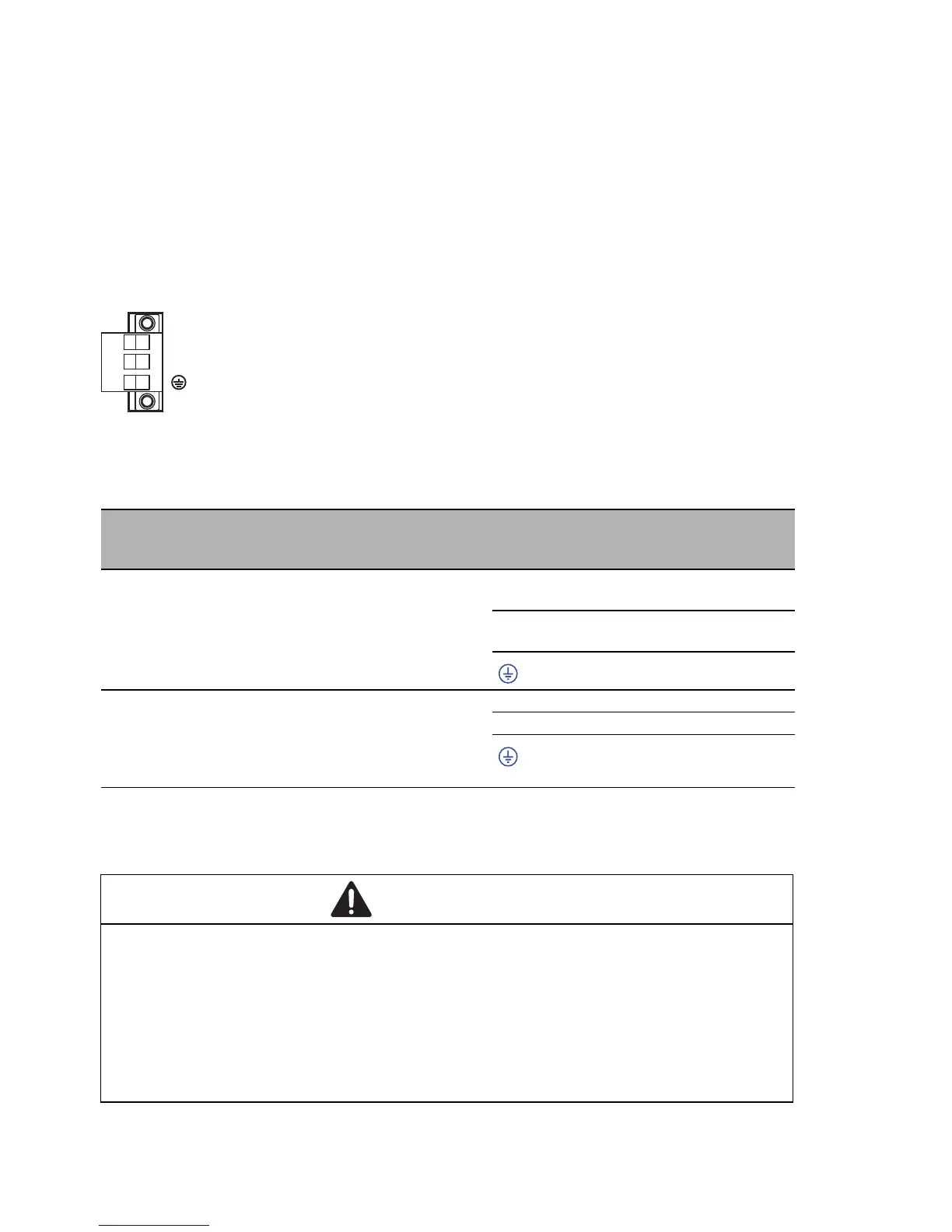

Figure 4: Working voltage with the characteristic value KK: 3-pin terminal block with
screw locking
Type of the voltages
that can be
connected
Specification of the working
voltage
Connections
DC voltage Rated voltage range DC
60 V ... 250 V
Voltage range DC incl.
maximum tolerances
48 V ... 320 V
+/L Plus terminal of the working
voltage
−/N Minus terminal of the working
voltage
Protective conductor
AC voltage Rated voltage range AC
110 V ... 230 V, 50 Hz ... 60 Hz
Voltage range AC incl.
maximum tolerances
88 V ... 265 V, 47 Hz ... 63 Hz
+/L Outer conductor
−/N Neutral conductor
Protective conductor
Table 9: Working voltage with the characteristic value KK: type and specification of
the working voltage, connections
WARNING
ELECTRIC SHOCK
Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.
Failure to follow these instructions can result in death, serious injury,
or equipment damage.
N
L
