Installation RSP 20/25/30/35
Release 08 08/2014
 Dimension drawings

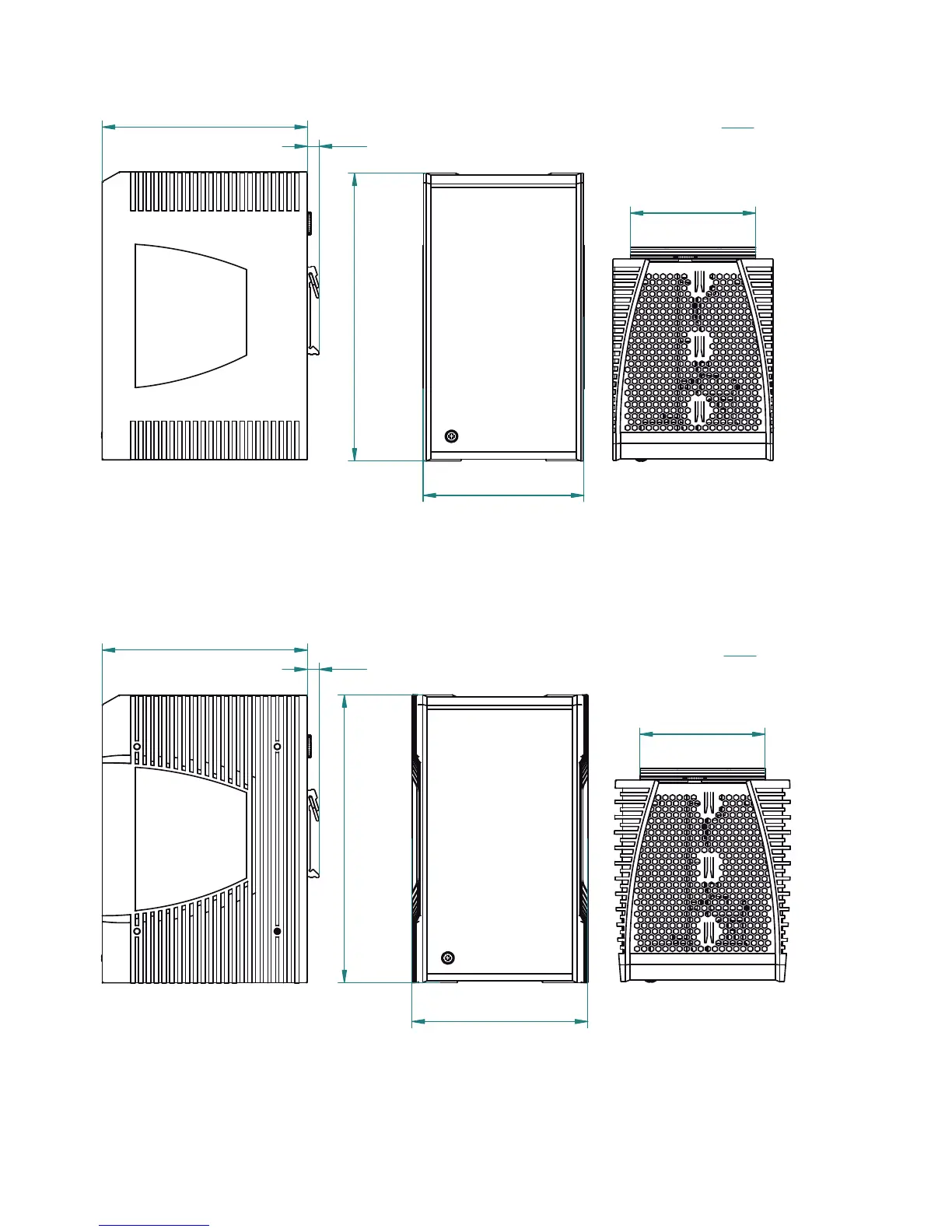

Figure 6: Dimensions of the device variants with operating temperature character-
istic value S. For the characteristic value, cf. “Device name and product
code” on page 13.
Figure 7: Dimensions of device variants with operating temperature characteristic
value E and T. For the characteristic value, cf. “Device name and product
code” on page 13.
mm
inch
70
2.76
4.52
114,7
6,55
0.26
89,9
3.54
163,6
6.44
mm
inch
98,29
3.87
163,6
6.44
70
2.76
4.52
114,7
6,55
0.26
