Hitachi LP-WU6600 - Rear View Overview; Projector Keypad Functions

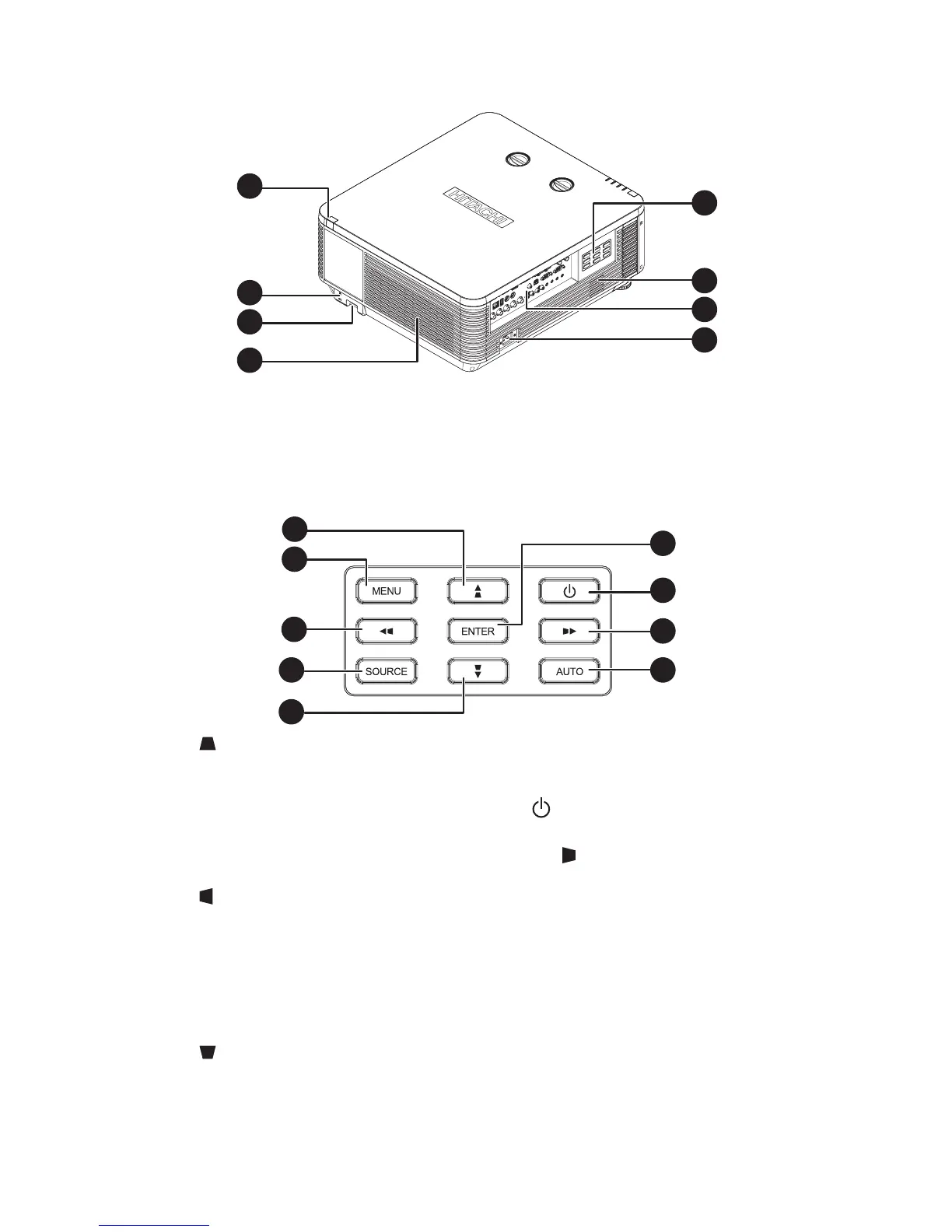

Projector parts and functions
19
1. Infrared sensor
2. Kensington
®
lock
3. Security Bar
4. Ventilation outlet
5. Projector keypad
6. Speaker
7. I/O control
8. Power inlet
1. ▲/
Use this button to make your selection or
congure, adjust conguration.
Hotkeys for 2D keystone adjustment menu.
2. MENU
Displays or hides the OSD adjustment
screen.
3. ◄/
Use this button to make your selection or
congure, adjust conguration.
Hotkeys for 2D keystone adjustment menu.
4. SOURCE
Used to toggle between different input
signal source.
5. ▼/
Use this button to make your selection or
congure, adjust conguration.
Hotkeys for 2D keystone adjustment menu.
6. ENTER
Press to select items in the menu or
conrm the settings you have changed.
7.
Press to power on or down the projector.
8. ►/
Use this button to make your selection or
congure, adjust conguration.
Hotkeys for 2D keystone adjustment menu.
9. AUTO
Auto adjust the signal synchronization.
Rear view
1
2
4
3
5
7
6
8
Projector keypad
1
6
2
3
4
5
7
8
9
